Welcome to our ultimate guide on mastering the ACC aerodynamics setup.
In the world of GT3 racing, understanding and optimizing your ACC aerodynamics can make all the difference in achieving optimal performance on the track.
So, whether you’re a seasoned pro or just starting out, we’ve got you covered with all the essential information you need to know.
Table of Contents
- Key Takeaways:
- GT3 Aero Balance and Physics
- Adjusting Incidence of the Wing and Splitter
- The Role of Ground Clearance and Rake Angle
- Ground Clearance and Rake Angle
- Car Downforce and Drag
- The Role of Aerodynamic Adjustments
- High-Speed Understeer and Oversteer
- Managing High-Speed Understeer and Oversteer
- Finding the Optimal Aero Setup for Top Speed
- Managing Imbalances for Acceleration and Cornering
- Load Transfer and Its Effects
- Managing Load Transfer for Better Performance
- Adjusting Aerodynamics for Handling Issues
- Fine-Tuning Incidence and Ride Height
- Fine-Tuning for Performance Enhancements
- Optimizing tire performance and fuel consumption
- The Importance of the Rear Wing
- Maximizing Performance with the Rear Wing
- Conclusion
- FAQ
- What is the role of ground clearance and rake angle in ACC aerodynamics?
- How can I achieve optimal balance in ACC GT3 aerodynamics?
- How does ground clearance affect load transfer and aerodynamic balance?
- What is the relationship between downforce and drag in car aerodynamics?
- How can I address high-speed understeer and oversteer in ACC?
- What should I consider for achieving top speed in ACC?
- What is load transfer and how does it affect car performance?
- How can I adjust aerodynamics to address handling issues in ACC?
- How can I fine-tune aerodynamics for performance enhancements in ACC?
- What is the importance of the rear wing in ACC aerodynamics?
- How can I master the ACC aerodynamics setup for GT3 racing?
Key Takeaways:
- Adjusting ground clearance is crucial for efficient aerodynamic functioning in ACC GT3 cars.
- The concept of “rake” determines the difference in ground clearance between the front and rear of the car.
- Positive rake accelerates airflow under the car to generate downforce, while negative rake reduces drag and balances the car.
- Balancing aerodynamic elements like the splitter, wing, and diffuser is essential to finding the optimal setup for top speed.
- Load transfer plays a significant role in handling and can be managed by adjusting ride heights and wing incidence.
GT3 Aero Balance and Physics
In ACC, understanding the intricate relationship between GT3 aerodynamics and car performance is essential for achieving the perfect balance on the track. Manipulating the front and rear ride heights allows us to fine-tune the aerodynamic setup to address handling characteristics such as understeer and oversteer. When braking, load transfers forward, causing understeer.
To counter this, we can reduce the front ride height or increase the rear ride height. Conversely, if we experience oversteer during high-speed cornering, we can adjust the front and rear ride heights accordingly. It’s a delicate dance of finding the optimal balance to maximize grip and performance.
Adjusting Incidence of the Wing and Splitter
In addition to ride height adjustments, modifying the incidence of the wing and splitter can have a significant impact on aerodynamic performance. By increasing or decreasing the angle of the wing and splitter, we can influence factors such as stability, top speed, acceleration, tire performance, and even fuel consumption. It’s important to carefully consider the specific demands of each circuit and the desired outcome before making these adjustments. An optimal GT3 aero balance necessitates a comprehensive understanding of the physics involved and the ability to adapt the setup to varying track conditions.
The Role of Ground Clearance and Rake Angle
Ground clearance and rake angle are key factors in GT3 aerodynamics. Ground clearance, measured in millimeters, affects load transfer and the overall balance between aerodynamic elements. The concept of rake defines the difference in ground clearance between the front and rear of the car. Positive rake accelerates airflow under the car, generating downforce, while negative rake sacrifices rear wing angle to reduce drag and achieve higher top speeds. Striking the right balance is crucial, as excessive rake can decrease downforce and compromise the car’s overall performance.
Ground Clearance and Rake Angle
When it comes to optimizing the aerodynamics of your ACC GT3 car, understanding the concept of ground clearance and rake angle is crucial. Ground clearance refers to the distance between the bottom of the car and the ground, measured in millimeters. Rake angle, on the other hand, defines the difference in ground clearance between the front and rear of the car.
Negative rake angle, as seen in the Ferrari 488 GT3 at Monza (as well as some other cars), sacrifices rear wing angle to reduce drag and achieve better top speeds. In this configuration, the rear of the car sits lower than the front. On the contrary, positive rake angle accelerates the flow of air under the car, generating increased downforce. This setup is achieved when the rear sits higher than the front. It is important to find the right balance, as raising the rear too much can decrease downforce and affect the overall balance of the car.
By adjusting the ground clearance and rake angle, you can fine-tune the aerodynamic performance of your ACC GT3 car. Negative rake angle can help you achieve higher top speeds, while positive rake angle can enhance your cornering and overall stability. Experimentation and practice are key to finding the optimal setup that suits your driving style and the demands of each circuit.
Car Downforce and Drag
When it comes to car performance, the interplay between downforce and drag is of utmost importance. Downforce is crucial as it provides increased grip and stability, allowing us to maintain control during high-speed maneuvers. By manipulating the aerodynamic elements such as the splitter, wing, and diffuser, we can adjust the amount of downforce generated. This allows us to optimize the car’s handling and performance in different driving conditions.
However, it’s essential to note that increasing downforce also increases drag, which can negatively impact the car’s top speed. A higher drag coefficient means that the car encounters more resistance as it moves through the air, thus reducing its maximum achievable speed. Finding the right balance between downforce and drag is a delicate task, as we need to maximize the car’s grip and stability without sacrificing too much top speed.
The Role of Aerodynamic Adjustments
Adjusting the car’s aerodynamics is a key strategy in managing the balance between downforce and drag. By fine-tuning the incidence of the wing, splitter, and other aerodynamic components, we can optimize the downforce levels to suit our specific needs. By finding the perfect balance, we can ensure that our car maintains stability and grip while still achieving high speeds on the straights.
However, it’s important to approach aerodynamic adjustments with caution. Modifying the aerodynamics without considering other factors, such as suspension setup or tire performance, can lead to imbalances and suboptimal performance. It’s crucial to take a holistic approach and consider all aspects of the car’s setup when making aerodynamic adjustments.
High-Speed Understeer and Oversteer
When it comes to high-speed cornering in ACC, two common challenges that drivers face are high-speed understeer and high-speed oversteer. High-speed understeer occurs when the front tires lose grip and the car tends to push wide during these fast turns. On the other hand, high-speed oversteer is characterized by the rear of the car losing grip and sliding out, making it harder to control.
To address high-speed understeer, there are a few adjustments we can make to the aerodynamics setup. One option is to reduce the front ride height, which can help increase grip on the front tires and improve overall cornering performance. Another option is to increase the rear ride height, which shifts more weight to the rear of the car, providing better traction and stability.
Conversely, for high-speed oversteer, we can make opposite adjustments to the aerodynamics setup. Increasing the front ride height and reducing the rear ride height can help to counteract the rear end sliding out and improve control during high-speed cornering.
Managing High-Speed Understeer and Oversteer
In addition to adjusting the ride heights, fine-tuning the incidence of the splitter and rear wing can also help in managing high-speed understeer and oversteer. Increasing the angle of the rear wing can generate more downforce, which can provide additional grip and stability to the rear of the car. However, it’s important to find the right balance, as too much downforce can increase drag and affect top speed.
Ultimately, finding the optimal aerodynamics setup to manage high-speed understeer and oversteer requires experimentation and practice. Each track and driving style may require slightly different adjustments, so it’s important to monitor the car’s performance and make small changes to achieve the desired balance and control during high-speed cornering.
Finding the Optimal Aero Setup for Top Speed
When it comes to achieving top speed in ACC, finding the perfect balance between downforce and drag is essential. In fast circuits with a smooth surface, we can optimize the car’s aerodynamics by reducing the incidence of the rear wing and implementing a stiffer suspension setup. This setup helps stabilize the car, although it may sacrifice some mechanical grip.
Conversely, in circuits with uneven surfaces and where traction out of slow corners is crucial, we can fine-tune the aerodynamics by maintaining a softer suspension setup. Additionally, increasing the incidence of the rear wing can help manage imbalances and improve acceleration.
To maximize top speed, minimizing drag is crucial. This can be achieved by adjusting the ride heights and carefully analyzing the wing incidence. By finding the right balance between downforce and drag, we have the potential to unlock higher speeds and improve overall performance in ACC.
Managing Imbalances for Acceleration and Cornering
While speed is important, managing imbalances during acceleration and cornering is equally crucial. By modifying the ride heights and adjusting the incidence of the wing and splitter, we can address common handling issues such as understeer and oversteer. Reducing the front ride height or increasing the rear ride height can improve grip and overall cornering performance, reducing understeer. On the contrary, increasing the front ride height or reducing the rear ride height can mitigate oversteer.
Furthermore, adjusting the incidence of the splitter and rear wing can also help manage high-speed understeer and oversteer. These aerodynamic tweaks can make a significant difference in achieving optimal aerodynamic balance, stability, and control during high-speed maneuvers.
By experimenting with different setups and fine-tuning our aerodynamics, we can find the optimal setup that suits our driving style and the demands of each circuit. The quest for the perfect aerodynamic balance for top speed in ACC is a journey that requires patience, practice, and attention to detail. But with perseverance, we can unlock the true potential of our GT3 car and maximize our performance on the track.
Load Transfer and Its Effects
When it comes to achieving optimal performance in ACC, understanding load transfer and its effects is essential. Load transfer refers to the shifting of weight during different driving conditions, and it can have a significant impact on traction and grip.
During braking, the weight of the car shifts forward as the front suspension compresses. This can lead to understeer, where the front tires lose grip and the car tends to push wide during high-speed cornering. To address this, reducing the front ride height or increasing the rear ride height can improve grip and cornering performance.
On the other hand, during acceleration, load transfer to the rear improves traction and grip, particularly benefiting rear-wheel drive cars. This can help with acceleration out of corners and maintaining control at high speeds. Adjusting the ride heights and wing incidence can further enhance acceleration and overall performance.
Managing Load Transfer for Better Performance
Managing load transfer is all about finding the right balance between weight distribution and grip. By carefully adjusting the aerodynamic setup, we can optimize traction to maximize performance on the track. Whether it’s reducing understeer, mitigating oversteer, or improving stability, load transfer plays a vital role in achieving the desired handling characteristics.
By considering load transfer and its effects, we can fine-tune our ACC aerodynamics setup to suit our driving style and the demands of each circuit. Experimentation and practice are key to finding the optimal setup that allows us to harness the full potential of our GT3 race car.
Adjusting Aerodynamics for Handling Issues
When it comes to achieving the optimal performance in ACC, aerodynamic adjustments play a vital role in addressing common handling issues. Whether you’re dealing with understeer, oversteer, or general instability, fine-tuning the aerodynamics can help improve grip, cornering performance, and overall car balance.
For those struggling with understeer, reducing the front ride height or increasing the rear ride height during different stages of cornering can greatly enhance grip and cornering performance. By making these adjustments, we can shift the weight distribution and improve the front-end traction, allowing for better control and responsiveness through the turns.
On the other hand, if you find yourself battling oversteer, increasing the front ride height or reducing the rear ride height can help restore stability and minimize the risk of the rear end sliding out during high-speed cornering. These adjustments help redistribute the weight and improve the grip on the rear tires, giving you more confidence and control over the car.
Fine-Tuning Incidence and Ride Height
In addition to adjusting the ride heights, fine-tuning the incidence of the wing and splitter can also aid in managing understeer, oversteer, and instability. By experimenting with different angles, we can optimize the balance between downforce and drag, allowing for better overall performance on the track.
Remember, finding the perfect aerodynamics setup is a process of trial and error. Each driver’s style and the demands of each circuit may require slight variations in the adjustments. It’s essential to experiment with different setups and practice to determine what works best for you. With practice and a keen understanding of aerodynamic principles, you’ll be able to fine-tune your ACC setup and tackle any handling issues that come your way.
Fine-Tuning for Performance Enhancements
When it comes to achieving peak performance in ACC, fine-tuning the aerodynamics setup can make a world of difference. We can optimize various aspects of our car’s performance, such as top speed, acceleration, tire performance, and even fuel consumption, by making specific adjustments to our aerodynamic configuration.
To improve our top speed, we need to focus on reducing drag while still maintaining stability. By carefully adjusting the incidence of the wing and splitter, we can minimize aerodynamic resistance and maximize our car’s forward momentum. This allows us to reach higher speeds on the straights and gain a competitive edge.
Acceleration is another crucial factor in racing, and our aerodynamics setup can greatly influence it. By fine-tuning our ride heights and wing incidence, we can optimize the balance between downforce and drag, resulting in improved acceleration off the line and out of corners. This enhanced acceleration can give us the edge we need to gain positions and maintain a competitive edge throughout the race.
Optimizing tire performance and fuel consumption
Our aerodynamics setup also plays a significant role in tire performance and fuel consumption. By carefully managing the cooling of our tires through brake duct openings, we can optimize temperature levels and prevent overheating. This allows for better grip and consistent performance, enhancing our overall lap times.
Additionally, fine-tuning our aerodynamics can help us manage fuel consumption more effectively. By reducing drag and optimizing our aerodynamic balance, we can achieve better fuel efficiency without sacrificing performance. This strategic approach ensures that we can go the distance without compromising on speed or power.
When it comes to performance enhancements in ACC, fine-tuning our aerodynamics setup is key. By focusing on top speed, acceleration, tire performance, and fuel consumption, we can fine-tune our car to deliver the best possible performance on the track. So let’s delve into the world of aerodynamics and unleash the full potential of our racing machines!

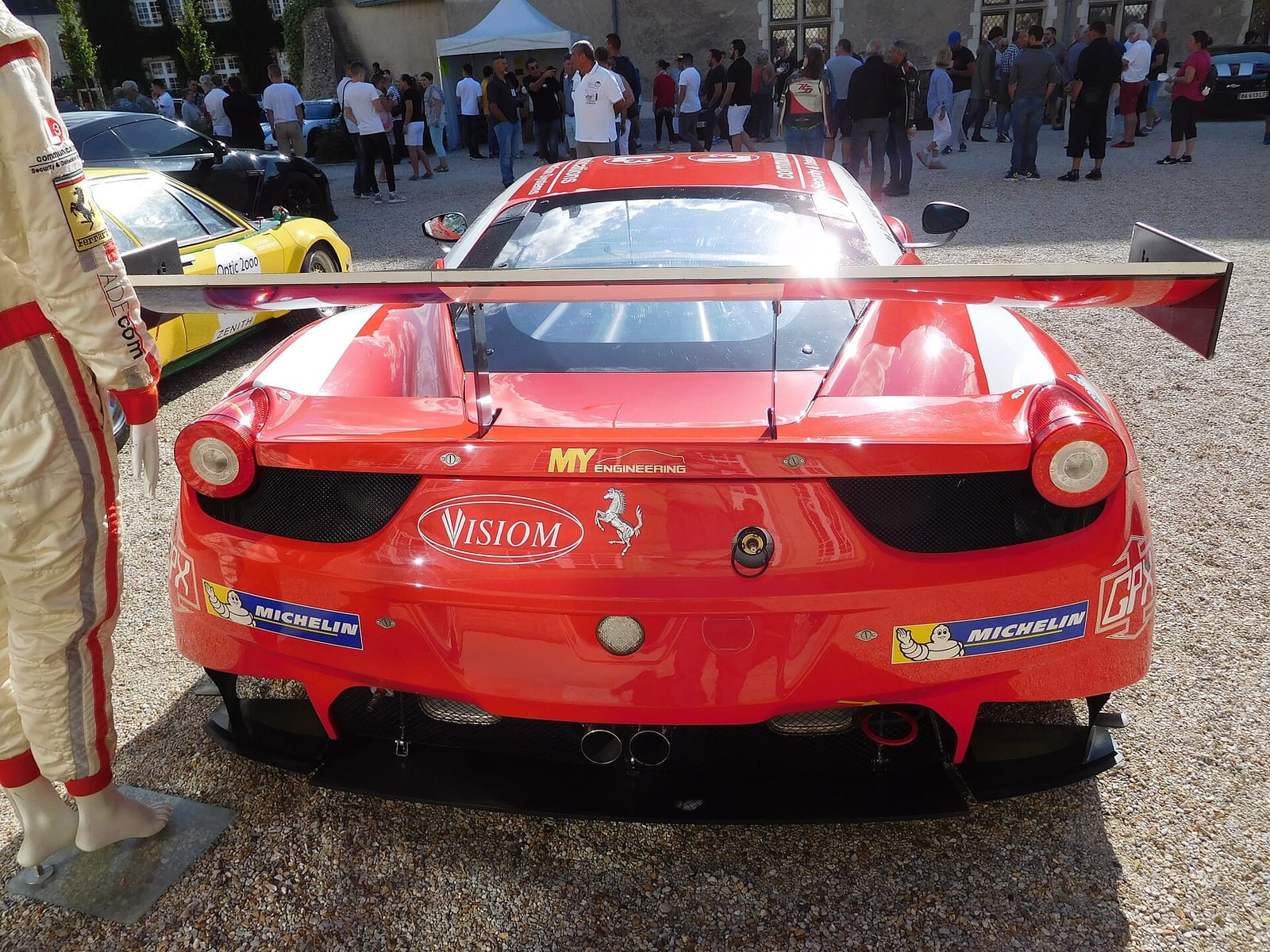

The Importance of the Rear Wing
The rear wing is a critical component of the aerodynamic setup in GT3 racing cars. Its primary function is to generate downforce, which enhances car stability and improves cornering performance at high speeds. By creating a downward force, the rear wing helps to minimize pitching and rolling, allowing the car to maintain its balance and maneuver through turns with precision.
In addition to providing stability, the rear wing also plays a crucial role in maintaining mechanical grip. As the car accelerates and the weight shifts to the rear, the rear wing helps to improve traction, especially in rear-wheel drive cars. The increased mechanical grip allows the driver to put down power more efficiently, resulting in better acceleration and overall performance.
It is important to find the right balance when adjusting the rear wing. Increasing the angle of the wing can generate more downforce, but it also increases drag, which can impact top speed. Conversely, reducing the angle of the wing can reduce drag, but it may compromise the stability and grip of the car. Finding the optimal rear wing setup requires careful consideration of factors such as track conditions, driving style, and the desired balance between stability and speed.
Maximizing Performance with the Rear Wing
To maximize performance with the rear wing, it is essential to understand how it interacts with other aerodynamic elements of the car. The rear wing should be adjusted in conjunction with the front splitter and other components to maintain the desired balance and overall aerodynamic efficiency. Fine-tuning the rear wing setup, along with other adjustments to the aerodynamic package, can have a significant impact on the car’s performance and lap times.
Conclusion
In conclusion, mastering the ACC aerodynamics setup is crucial for achieving optimal performance in GT3 racing. By understanding the principles of ground clearance, rake angle, and load transfer, we can find the perfect balance between downforce and drag to enhance our car’s performance.
Fine-tuning the aerodynamics allows us to address specific handling issues and make performance enhancements on the track. By adjusting the ride heights, wing incidence, and other parameters, we can improve top speed, acceleration, tire performance, and fuel consumption. It’s important to experiment and practice to find the optimal setup that suits our driving style and the demands of each circuit.
So, whether you’re a seasoned driver or just starting out in ACC, investing time and effort into understanding and tuning your car’s aerodynamics will undoubtedly give you a competitive edge on the racetrack. Remember, the acc aero setup is a key aspect of car aerodynamics tuning that can significantly impact your performance in GT3 racing.
FAQ
What is the role of ground clearance and rake angle in ACC aerodynamics?
Ground clearance and rake angle play a crucial role in determining the aerodynamic performance of ACC GT3 cars. Positive rake accelerates airflow under the car, generating downforce, while negative rake sacrifices rear wing angle to reduce drag and balance the car.
How can I achieve optimal balance in ACC GT3 aerodynamics?
Adjusting the front and rear ride heights is key to achieving optimal balance in ACC GT3 aerodynamics. For understeer, you can reduce the front ride height or increase the rear ride height, while oversteer can be mitigated by increasing the front ride height or reducing the rear ride height.
How does ground clearance affect load transfer and aerodynamic balance?
Ground clearance affects load transfer and the balance between aerodynamic elements in ACC. It is closely related to the concept of rake angle, which determines the difference in ground clearance between the front and rear of the car. Maintaining the right balance is crucial for optimal aerodynamic performance.
What is the relationship between downforce and drag in car aerodynamics?
Downforce provides increased grip and stability, but it also generates drag. Finding the right balance between downforce and drag is essential for achieving optimal performance in ACC. Adjustments to the wing, splitter, and diffuser can help manipulate the amount of downforce generated.
How can I address high-speed understeer and oversteer in ACC?
High-speed understeer can be countered by reducing the front ride height or increasing the rear ride height, while high-speed oversteer can be mitigated by increasing the front ride height or reducing the rear ride height. Adjusting the incidence of the splitter and rear wing can also help manage these handling issues.
What should I consider for achieving top speed in ACC?
Achieving top speed requires finding the right balance between downforce and drag. In circuits with smooth surfaces, reducing the incidence of the rear wing and using a stiffer suspension setup can help stabilize the car. In circuits with uneven surfaces and where traction out of slow corners is crucial, maintaining a soft suspension setup and increasing the incidence of the rear wing can be beneficial.
What is load transfer and how does it affect car performance?
Load transfer refers to the shifting of weight during different driving conditions. During braking, weight shifts forward, causing understeer, while during acceleration, load transfer to the rear improves traction and grip. Understanding load transfer and its effects is important for achieving optimal performance in ACC.
How can I adjust aerodynamics to address handling issues in ACC?
For understeer, reducing the front ride height or increasing the rear ride height at different stages of cornering can improve grip and cornering performance. Oversteer can be mitigated by increasing the front ride height or reducing the rear ride height. Lowering the ride height and adjusting the incidence of the wing and splitter can also help address instability.
How can I fine-tune aerodynamics for performance enhancements in ACC?
Fine-tuning the aerodynamics setup can lead to performance enhancements in various aspects. Adjusting the ride heights and wing incidence can improve top speed and acceleration. Modifying parameters such as brake duct openings can help manage tire temperatures, bottoming out, brake performance, and fuel consumption.
What is the importance of the rear wing in ACC aerodynamics?
The rear wing plays a vital role in stabilizing the car and maintaining aerodynamic balance. It generates downforce and minimizes pitching and rolling, providing stability during high-speed maneuvers. The rear wing is an essential component for overall car performance.
How can I master the ACC aerodynamics setup for GT3 racing?
Mastering the ACC aerodynamics setup requires understanding the principles of ground clearance, rake angle, and load transfer. Fine-tuning the setup for specific handling issues and performance enhancements can make a significant difference on the track. Experimentation and practice are key to finding the optimal setup that suits your driving style and the demands of each circuit.
