Have you ever dreamed of having an epic sim racing cockpit in the heart of your gaming environment? With this comprehensive guide, we aim to help you turn that dream into reality. From selecting the right materials, designing your setup, and crafting every component, this guide contains everything you need to know to build your own sim racing rig out of wood, tailored to your preferences and needs. Let’s dive into the world of DIY and construct a sturdy, stylish, and ergonomic wooden sim racing cockpit that not only improves your gaming experience but also instills a sense of accomplishment in your handiwork.

Key Takeaways

  • Wood is an affordable, durable, and customizable material choice for a homemade sim racing cockpit.
  • Collect essential materials and tools, such as logs, wood planks, screws, drill machine, saws, and sandpaper to build your own sim racing rig.
  • Design an ergonomic and personalized setup based on your measurements, preferences, and accessibility to racing controls.
  • Assemble your rig carefully and meticulously, ensuring every component aligns and fits together precisely and securely.
  • Attach your racing components such as wheel, pedals, and shifter correctly to create a fully functioning sim racing setup.
  • Apply finishing touches like sanding, painting, and protective coatings to give your homemade rig a polished look.
  • In the end, take pride in your handcrafted, personalized sim racing cockpit that rivals commercially available options.

Why Choose Wood for Your DIY Sim Racing Rig?

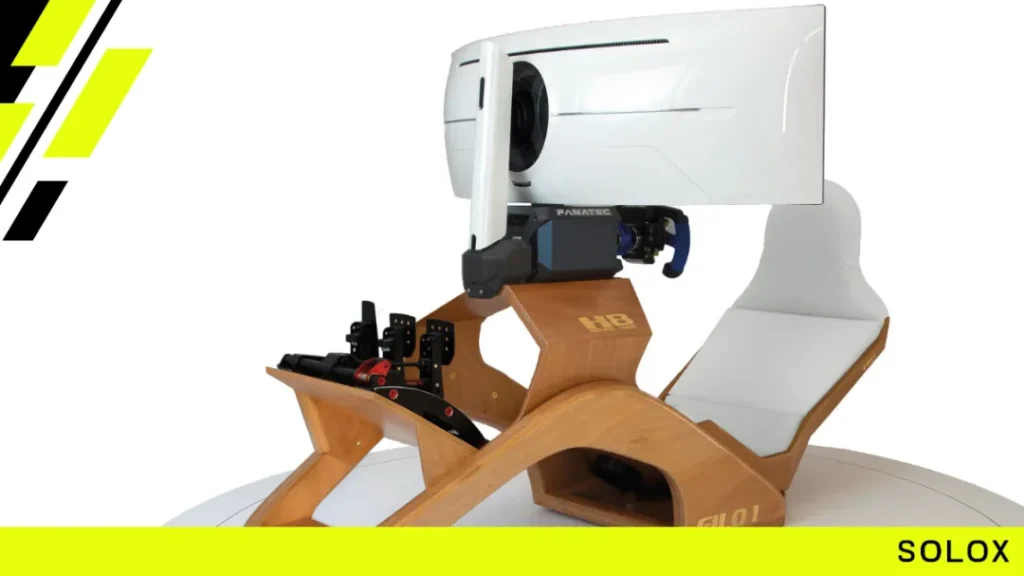

There’s a multitude of reasons to opt for a wooden setup when diving into the world of homemade sim racing rigs. Whether you are a newcomer or an experienced sim racing enthusiast, building a wooden rig offers significant advantages that can give you an edge over the competition.

One of the primary and most appealing reasons to choose wood for your sim racing rig is the cost-effectiveness. Committed sim racers often crave the ultimate racing experience but may be deterred by the steep price tags of pre-assembled kits and metal-built rigs. A budget sim racing setup made of wood allows racers to achieve a high-quality, performance-driven experience without breaking the bank. Wood is a widely available and affordable material, translating to significant savings as compared to the cost of commercial setups.

Why Choose Wood for Your DIY Sim Racing Rig?

Another advantage of working with wood lies in the fulfillment and satisfaction derived from building your own sim racing rig. Crafting a wooden rig allows you to take pride in your creation, showcasing skillful craftsmanship and creativity. A wooden sim racing rig not only boasts of impressive functionality but also serves as a proud testament to your hard work and dedication, elevating your gaming experience to new heights.

The inherent durability and ease of customization for wood make it a popular choice for sim racers seeking a tailored and robust setup. Wood presents the ability to create a rig with specifically-sized components, ensuring a perfect fit and optimal ergonomic setup for each individual. The rigidity of wood also guarantees stability for attached racing components, fostering a realistic and immersive racing experience, free from wobbly or insecure structures.

In conclusion, wood boasts several compelling advantages when constructing a homemade sim racing rig. With cost-effectiveness, pride in craftsmanship, and the ability to create a personalized and sturdy setup, there’s no doubt that the wooden sim racing rig is an excellent choice for racers looking for an unparalleled gaming experience.

Essential Materials and Tools for Your Wooden Sim Racing Rig

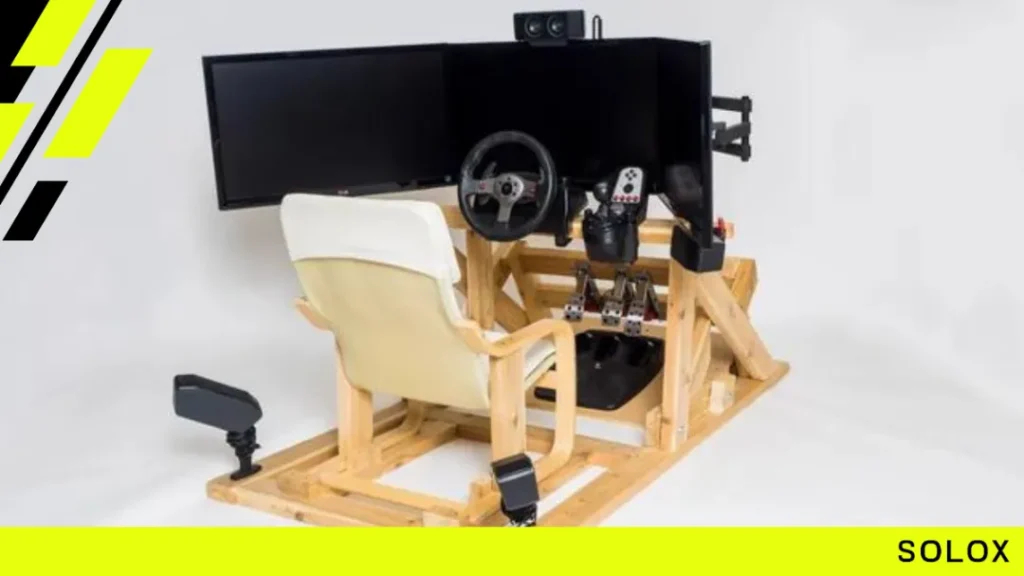

To embark on the building of a wooden sim racing rig, one must amass a collection of essential materials and tools. Starting with two logs measuring 80X100X4000 millimeters to create the structural framework, the subsequent selections of plates are critical for mounting the respective racing components.

Essential Materials and Tools for Your Wooden Sim Racing Rig

The necessary plates for your DIY sim rig wood project include a pedal-plate (400x22x460mm), a shifter-plate (150x22x170mm), and a wheelbase-plate (350x22x535mm). Supplementing the wood are a variety of six-point wood screws, metric screws, and M6 welf nuts. These materials are crucial for ensuring a sturdy and reliable sim racing rig.

When it comes to essential DIY tools, the toolkit required features a chop saw with a table for precision cuts, a cutting saw or handsaw, screwdrivers, a drill machine with various bits, a wrench, and potentially a sandpaper for finishing touches. These tools not only help you achieve precise cuts and joins but also make the entire building process smoother and more manageable.

With the right materials and tools in hand, and a well-thought-out sim racing rig plan, you can bring your dream wooden sim racing rig to life, tailored to fit your specific racing needs and preferences.

Designing Your Wooden Sim Racing Cockpit

Designing Your Wooden Sim Racing Cockpit

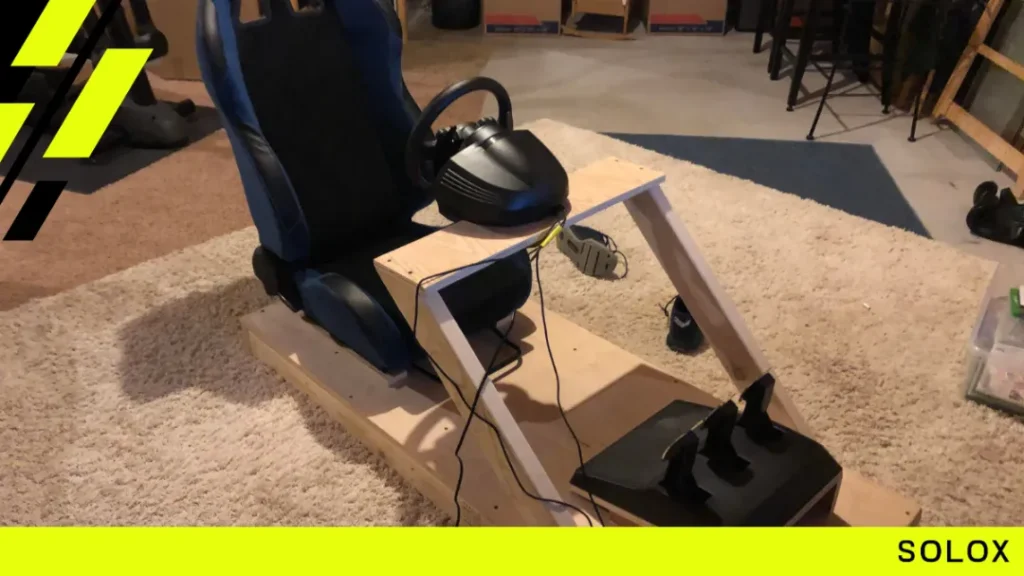

Creating a personalized and comfortable sim racing cockpit starts with meticulous planning, which revolves around understanding measurements, developing stable and ergonomic structures, and selecting the ideal type of wood for your project.

Understanding Measurements and Customization

To achieve a customizable sim racing setup, it’s essential to realize that dimensions aren’t one-size-fits-all. Instead, they should be tailored to your frame, preferred seating position, and accessibility to racing controls. This stage of the building process often entails sketching drawings and creating mock layouts, which help you determine the correct distance between foundational logs according to the width of your chosen racing seat and ensure a comfortable reach to the wheel and pedals.

Creating Stable and Ergonomic Structures

Constructing a stable and ergonomic sim rig design is paramount in sim racing rig development. The process involves creating a solid base with logs and strategically positioning and securing poles to mount the wheel and pedals at the correct height and angle for optimal racing posture. Furthermore, it’s essential to focus on sturdiness through the use of thick wood and precise screw placements, ensuring that your stable DIY sim rig can withstand the force of intense racing.

Selecting the Right Type of Wood

One of the most crucial elements of your ergonomic sim racing structure is selecting the right type of wood. Plywood is favored for its balance of strength and rigidity, while MDF and particle board are cost-effective options that still provide enough durability for your wooden sim racing rig.

While selecting wood for your sim racing rig, consider the weight, height, and finish of the material. Aim to choose a type that is strong enough to support the equipment yet comfortable for lengthy racing sessions. Additionally, prepare for the preferred finish, such as a clear polyurethane coating, paint job, or a sleek stain, which will play an essential role in your sim rig’s final appearance.

Step-by-Step Assembly of Your DIY Wooden Sim Racing Rig

Building your own sim racing rig can be a rewarding and satisfying project. In this section, we will walk you through the DIY racing seat process and the step-by-step sim rig assembly, to provide you with everything you need to know on how to make a sim racing rig.

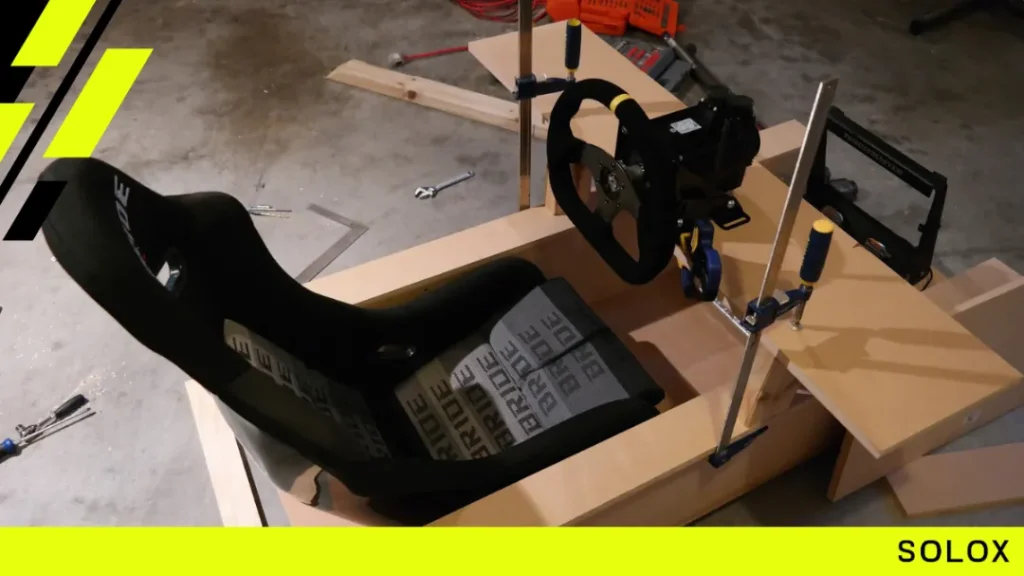

Step 1: Cutting the foundation logs and attaching the racing seat.

To begin, cut the foundation logs according to the specified lengths and angles. After cutting the logs, securely attach the racing seat. This will serve as the base of your DIY wooden sim racing rig.

Step-by-Step Assembly of Your DIY Wooden Sim Racing Rig

Step 2: Positioning and attachment of poles for the wheel and shifter.

Next, carefully position and attach the poles for the wheel and shifter, ensuring they are within easy reach from the driver’s seat.

Step 3: Introducing the movable wheel-plate.

Proceed with the addition of a movable wheel-plate, allowing you to adjust the distance of the wheel from the seated position as desired.

Step 4: Installing the pedal-plate.

When working on the pedal-plate, make sure to place and attach it in a way that facilitates a natural and comfortable pedaling action.

Step 5: Precision and careful measurements.

Throughout each step, precision and careful measurements are essential for perfecting the structure. Be sure to thoroughly check for fit and function before moving onto the next phase of assembly.

By following these steps, you can successfully assemble your own DIY wooden sim racing rig and enjoy the fulfillment of creating a personalized and ergonomic gaming setup.

Attaching the Racing Components to the Wood Frame

Mounting the racing components to your homemade sim racing rig is a crucial step in bringing your DIY cockpit to life. This stage requires precise positioning and secure attachment of all relevant hardware to the wooden frame you have painstakingly built.

Begin with the wheelbase plate, securely attaching it to the poles with metric screws and well nuts. This provides the necessary rigidity and minimal vibrations during high-intensity races, delivering a realistic and enjoyable driving experience.

Attaching the Racing Components to the Wood Frame

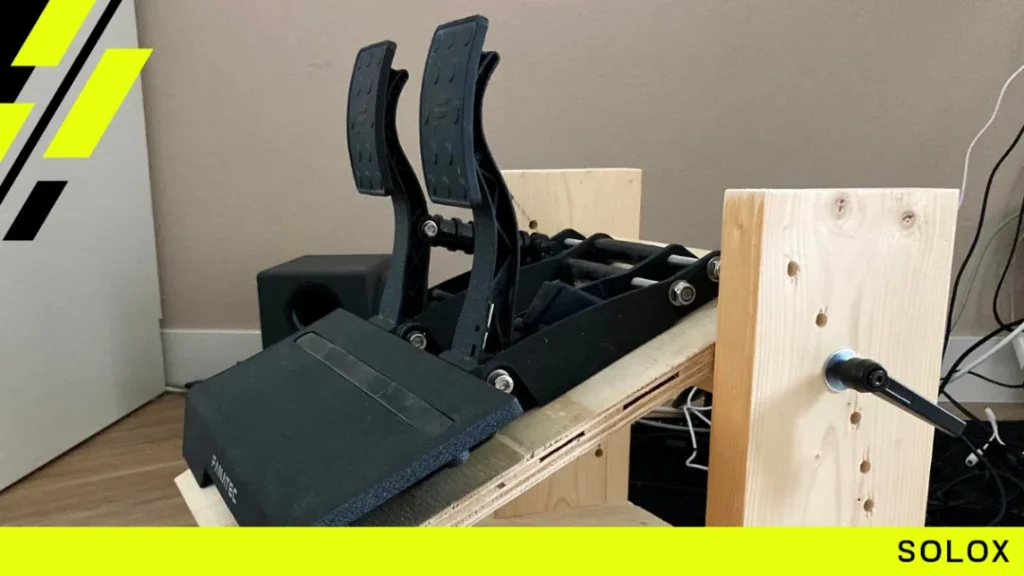

Next, focus on the pedals. They are an integral part of any DIY sim racing component fitment process. Employ M6x100 screws to fasten the pedals to the pedal-plate, ensuring that they are mounted to handle even the most forceful pedal presses during intense racing moments.

The shifter is another important part of the sim racing rig attachment plan. Establish a sturdy mounting platform for the shifter to guarantee smooth gear transitions and heighten the simulated driving experience. Careful attention to mounting positions and secure fasteners are key to achieving the desired outcome.

In conclusion, attaching the multitude of installing racing components is a vital step in transforming your wooden sim racing rig from a basic structure to a fully-functional and immersive racing setup. With all components securely anchored, you can look forward to countless hours of exhilarating racing action in the comfort of your own home.

Finishing Touches: Sanding, Painting, and Customization

Finishing Touches: Sanding, Painting, and Customization

Once the construction of your wooden sim racing rig is complete, it’s time to focus on the finishing touches. This stage is crucial, as it can turn a basic home-built rig into a professional-looking sim racing setup. There are several aspects to consider during this phase, including choosing the right finish for the rig, personalizing your sim racing setup, and achieving a professional look at home.

Choosing the Right Finish for Your Racing Rig

The finish you choose for your sim racing rig has a significant impact on its overall appearance and protection. A popular choice is a clear protective wood coat like polyurethane, which adds durability and highlights the natural wood grain. Another option is applying an aesthetic sim rig painting to create a cohesive or striking visual theme that complements your gaming environment. Whether you opt for a glossy or matte finish, it’s essential to select a high-quality product that ensures long-lasting protection.

Personalizing Your Sim Racing Setup

Personalization in sim racing rigs is crucial for making your setup unique and reflective of your personality and preferences. You can customize each element, from the DIY racing seat to the paint colors and designs that align with your favorite racing team or personal style. Integrating unique sim setup designs and adding fixtures like cup holders or gear shift knobs further enhance your rig’s one-of-a-kind appeal.

Achieving a Professional Look at Home

Although building your sim racing rig at home, you can still achieve a professional sim racing setup look by paying attention to detail and taking the time to perfect each aspect. From precise cuts and painting to immaculate finishing, each step contributes to the final home-built sim rig aesthetics.

A well-executed sim racing cockpit with sleek lines and smooth edges can rival even the most expensive commercially available rigs. With dedication and patience, your sleek DIY sim cockpit will not only boost your racing experience but will also become a source of pride and accomplishment.


Embarking on a homemade sim racing rig project is an exciting and rewarding experience. Building a wooden sim rig at home allows for a perfect blend of cost-effectiveness, customization, and personal satisfaction. With the right materials, tools, and a detailed plan, you can create a sturdy and ergonomic setup suited to your specific needs.

This DIY sim racing project not only equips you with a functional and realistic racing cockpit but also instills a sense of pride and ownership in your creation. The process lets you exercise your creativity, adjust the rig to cater to your comfort, and bond with the sim racing community through the shared passion for craftsmanship and racing.

In conclusion, we encourage aspiring builders to embark on their DIY journey and explore the possibility of constructing their dream sim racing rig, right within the comfort of their homes. With determination, patience, and precision, you can transform your vision of the ultimate racing setup into a reality, rivaling even commercial rigs in both performance and aesthetics.


Why should I choose wood for my DIY sim racing rig?

Wood offers a cost-effective alternative to pre-assembled kits and metal structures, and it is durable, easy to work with, and customizable. Additionally, the rigidity of wood ensures stability for the attached racing components, providing a realistic racing experience free from unwanted movements or wobbles.

What materials and tools do I need for a wooden sim racing rig?

Essential materials include logs and wood plates, six-point wood screws, metric screws, and M6 well nuts. The required tools are a chop saw with a table, a cutting saw or handsaw, screwdrivers, a drill machine with various bits, a wrench, and sandpaper for finishing touches.

How do I design and customize my sim racing cockpit?

Start by understanding the measurements needed for a snug and ergonomic fit based on your frame, seating position, and accessibility to racing controls. Plan meticulously with drawings and mock layouts, and choose the right type of wood for stability and appearance. Focus on creating a stable and ergonomic structure, with precise screw placements and strategic placements for wheel, pedals, and shifter.

What is the process for assembling a DIY wooden sim racing rig?

Begin by cutting the foundation logs into specified lengths and angles, and attach a racing seat to create a secure base. Position and attach poles for the wheel and shifter, ensuring they are within easy reach. Introduce a movable wheel-plate for distance adjustments, and attach the pedal-plate for a comfortable pedaling action. Throughout the process, emphasize precision and careful measurements to achieve a perfect structure.

How do I attach racing components to the wood frame?

Secure the wheelbase plate to the poles using metric screws and well nuts, ensuring rigidity and minimal vibrations. Attach pedals to the pedal-plate using M6x100 screws, and create a properly anchored shifter mounting platform. Use carefully drilled holes and sturdy fasteners to securely anchor all components to the rig.

What finishing touches should I consider for my DIY sim racing rig?

Choose the right finish for your racing rig, such as a clear polyurethane coating for a natural look, or a paint job to complement your gaming setup. Personalize your sim racing setup with paint colors or designs reflective of your style or favorite racing teams, and add fixtures such as cup holders or gear shift knobs to make your rig unique.

How can I achieve a professional look with my home-built sim rig?

Attention to details, precise cuts, careful painting, and immaculate finishing will all contribute to an impressive final product. A well-built sim racing cockpit with sleek lines and smooth edges can rival commercially available rigs in both appearance and functionality.
