The ACC Motec Data Guide: Mastering Performance and Setup Tuning

Welcome to our comprehensive guide on using MoTeC for ACC! MoTeC is a powerful data collection tool used by real-life race teams to optimize their race car setups. In ACC, MoTeC allows drivers to translate in-game data into real-life representations for performance improvement.

By harnessing the capabilities of MoTeC, you can gain valuable insights into your driving technique, understand your car’s behavior, and make data-driven adjustments for better lap times.

In this guide, we will take you through the process of downloading MoTeC for ACC, setting up your workspace, and utilizing the various worksheets available to analyze telemetry data.

Let’s dive in and master the art of finding performance and setup tuning with MoTeC!

Key Takeaways:

• MoTeC is a data collection tool used by real-life and sim racing teams for optimizing race car setups.
• In ACC, MoTeC allows drivers to analyze in-game data for performance improvement.
• Downloading MoTeC for ACC and setting up the workspace is essential to get started.
• The various worksheets in MoTeC help drivers analyze telemetry data and make data-driven adjustments.
• By mastering the use of MoTeC, drivers can improve their driving technique and optimize their lap times.

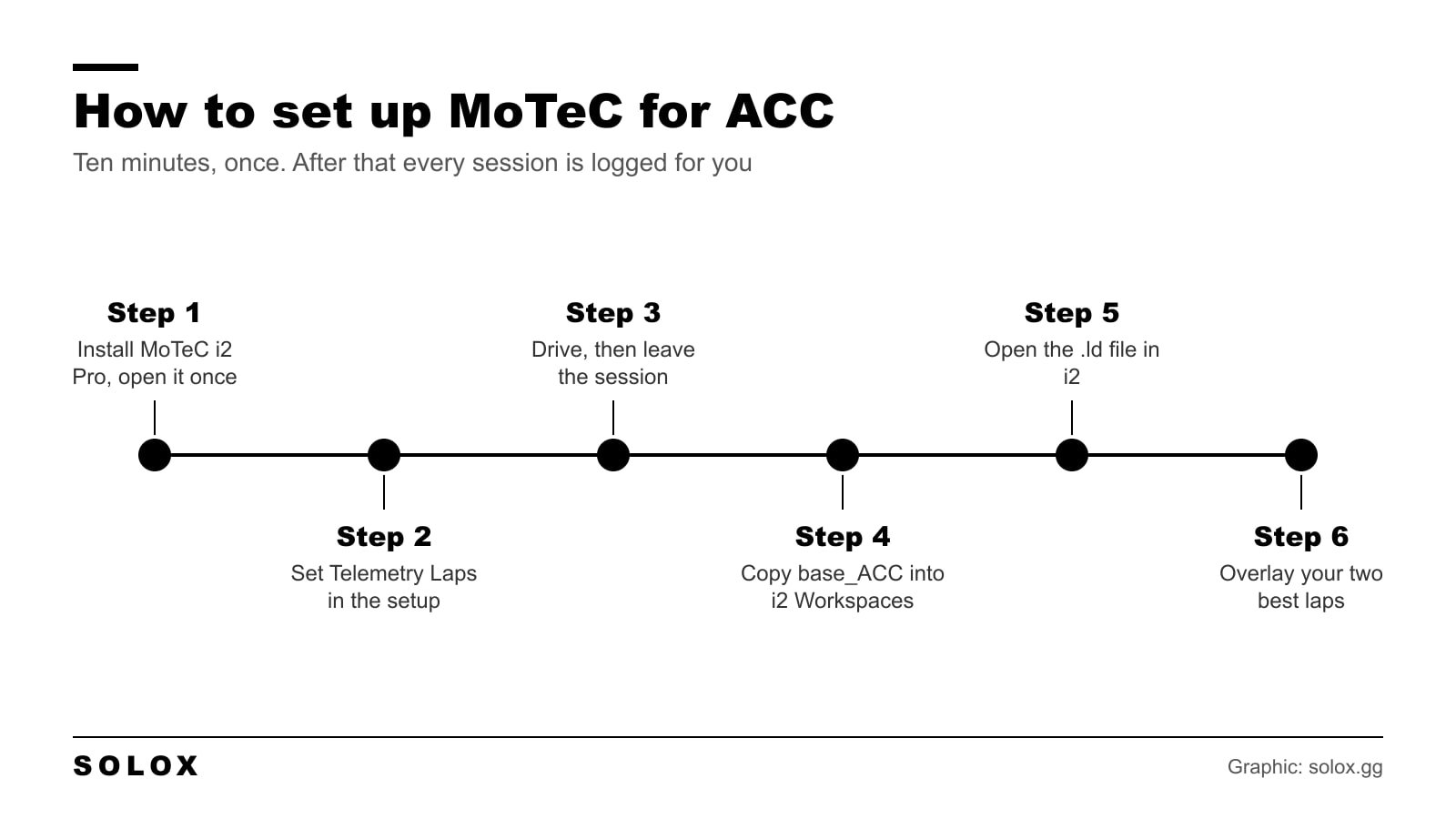

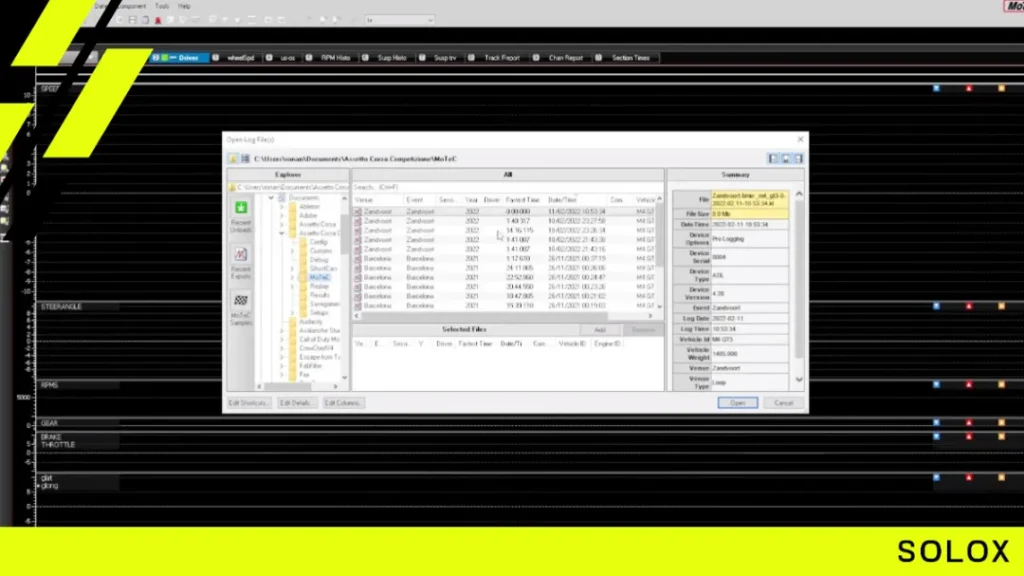

How to Download and Install MoTeC for ACC

If you’re looking to take your performance and setup tuning in Assetto Corsa Competizione (ACC) to the next level, downloading and installing MoTeC is a crucial step.

MoTeC is a powerful data analysis tool used by real-life race teams, and it allows you to translate in-game data into real-life representations for performance improvement.

In this tutorial, we’ll guide you through the process of downloading and installing MoTeC for ACC.

Step 1: Download MoTeC Software

The first step is to download the “MoTeC i2 Pro V1.1.4.0454 (64 bit)” software from the MoTeC website. Make sure to download the correct version that matches your system. Once the download is complete, proceed to the next step.

Step 2: Install MoTeC

After downloading the MoTeC software, run the installation file and follow the on-screen prompts to install it on your computer. The installation process is quick and straightforward.

Step 3: Set Up ACC Workspace

To use MoTeC with ACC, you’ll need to set up the ACC workspace. Locate the “base_ACC” file in the “documents/Assetto Corsa Competizione/MoTeC/Workspaces” folder and copy it. Then, navigate to the “documents/MoTeC/i2/Workspaces” folder and paste the copied file there. This step ensures that MoTeC recognizes ACC as a workspace.

Once you’ve completed these steps, you’re ready to start recording telemetry data in ACC using MoTeC. Drive laps in the game mode of your choice to record data, quit the game, and open the recorded telemetry in MoTeC by double-clicking the “.Id” file in the MoTeC folder.

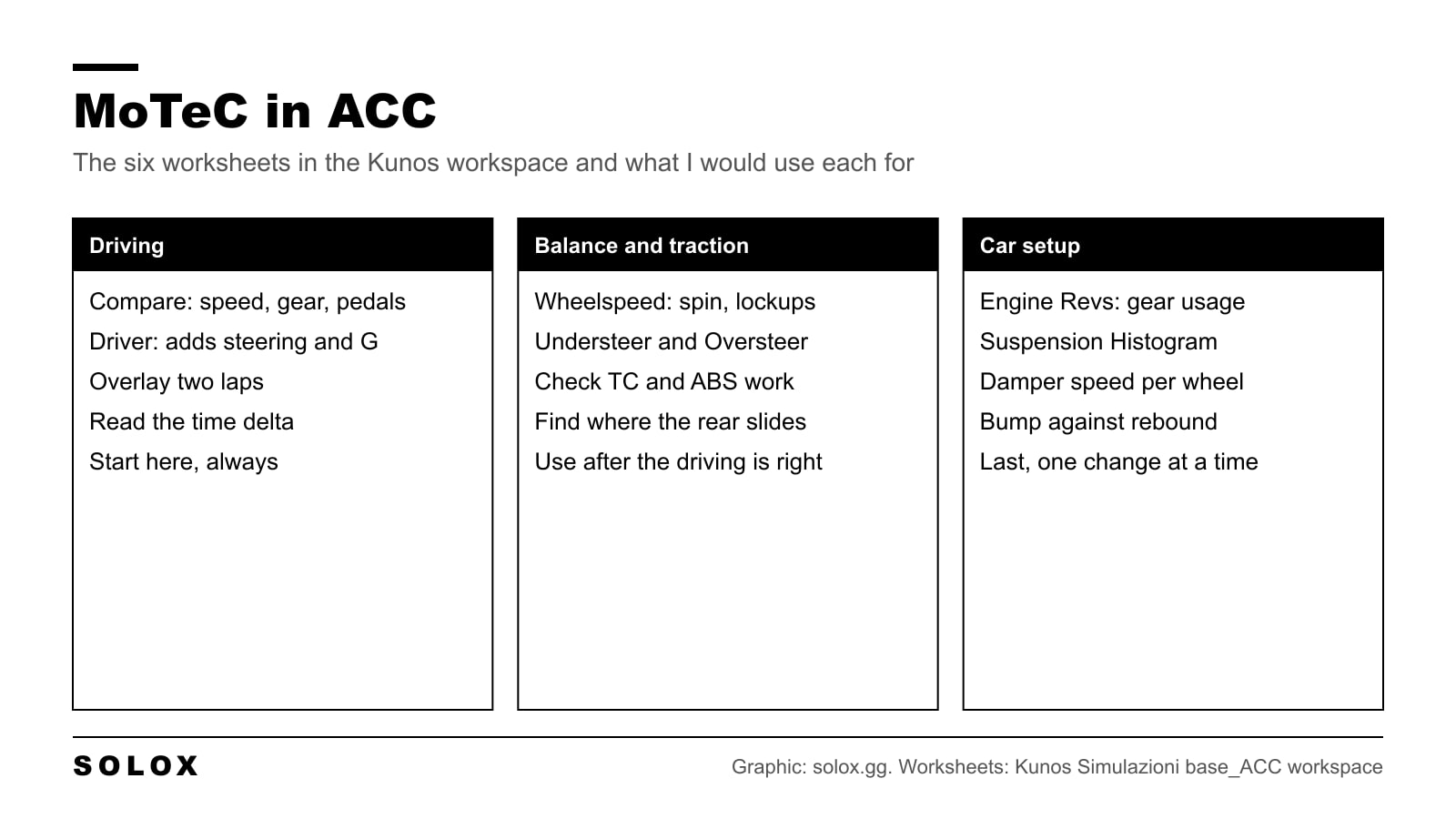

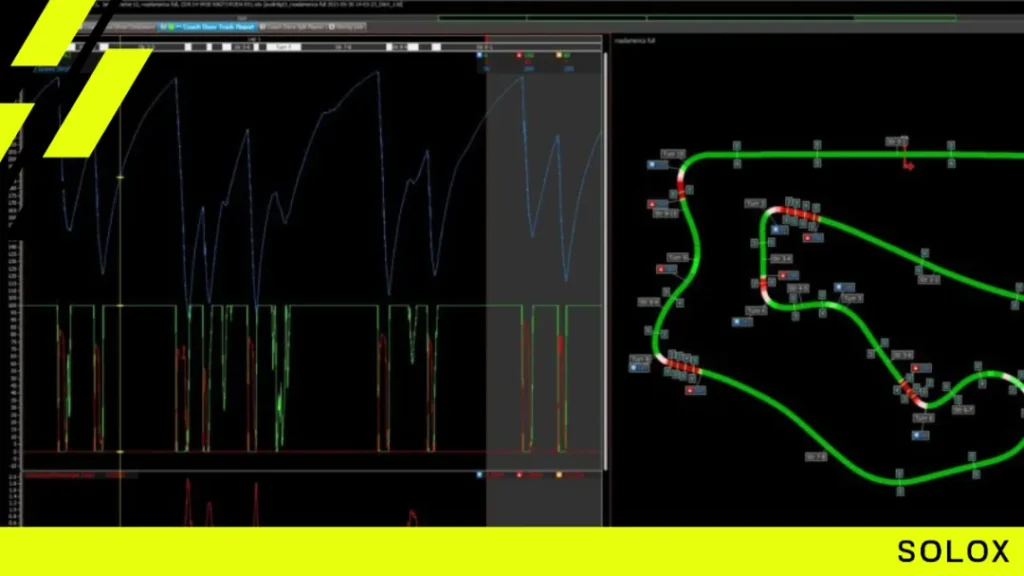

Using Worksheets in MoTeC

When it comes to fine-tuning your ACC setup and analyzing telemetry data, MoTeC offers a range of powerful worksheets to help you gain valuable insights into your performance.

Let’s explore some of the key worksheets available in MoTeC and how they can assist you in optimizing your ACC experience.

The Compare Worksheet

The Compare worksheet is a valuable tool for comparing multiple sessions and laps. It allows you to analyze crucial metrics such as corner speeds, brake pressure, and throttle application. By comparing different laps, you can identify areas where you may be losing time or lacking consistency. This insight enables you to make adjustments to your driving technique and car setup, ultimately improving your performance on the track.

The Driver Worksheet

The Driver worksheet provides additional information to enhance your understanding of your driving habits and car behavior. It displays parameters such as steer angle, longitudinal/lateral g-forces, and more. By analyzing this data, you can gain insights into the relationship between your steering inputs, corner speed, and grip. This knowledge allows you to fine-tune your driving technique and make informed decisions when optimizing your setup.

The Wheel Speed Worksheet

The Wheel Speed worksheet is particularly useful for analyzing wheel spin under acceleration or heavy braking. By monitoring this data, engineers can make precise adjustments to ABS and traction settings, ensuring optimal performance in different track conditions. Understanding the wheel speed data can greatly impact your car’s stability and overall grip, allowing you to push your limits while maintaining control.

Using the Compare Worksheet in MoTeC

The Compare worksheet in MoTeC is a powerful tool that allows us to analyze telemetry data in ACC and make data-driven adjustments for better performance. This worksheet displays multiple channels of information in line graphs, including speed, RPM, gear, brake, and throttle. By comparing multiple sessions and laps, we can identify areas for improvement and refine our driving technique and car setup.

With the Compare worksheet, we can analyze corner speeds, brake pressure, and throttle application. By overlaying different laps, we can visually identify where we are losing time and where we excel. This analysis helps us fine-tune our driving style and make adjustments to optimize our lap times. Whether it’s braking later, carrying more speed through corners, or optimizing our throttle control, the Compare worksheet provides valuable insights to help us improve.

Utilizing the Compare worksheet in MoTeC also enables us to analyze our performance against other drivers. By comparing our telemetry data with that of faster drivers, we can identify the differences in line choices, braking points, and throttle application. This information allows us to learn from their driving style and implement those techniques into our own driving, ultimately improving our overall performance.

Using the Compare Worksheet in MoTeC

When using the Compare worksheet, it’s important to focus on specific areas of the track where you believe there is room for improvement. By zooming in on these sections, we can compare the data from different laps and identify any inconsistencies or areas where we can push harder. This detailed analysis helps us refine our driving technique, make better decisions on the track, and ultimately shave off precious seconds.

In conclusion, the Compare worksheet in MoTeC is a valuable tool for ACC drivers looking to analyze telemetry data, identify areas for improvement, and optimize their performance. By utilizing this tool, we can refine our driving technique, make data-driven adjustments to our car setup, and ultimately improve our lap times. So, let’s dive into the data and unlock our true potential on the track!

Analyzing Data in the Driver Worksheet

The Driver worksheet in MoTeC is a valuable tool for ACC drivers to delve deeper into their telemetry data and gain a better understanding of their driving technique. This worksheet provides crucial information such as steer angle, longitudinal and lateral g-forces, and other parameters that give insights into the relationship between steering inputs, corner speed, and grip. By carefully analyzing this data, drivers can make data-driven adjustments to improve their driving technique, increase consistency, and optimize their car’s setup for maximum performance on the track.

When using the Driver worksheet, pay close attention to the steer angle data. This helps you understand how much input you are giving through the steering wheel and how it affects the car’s behavior. Additionally, the g-force data allows you to evaluate how the car is gripping the track during different maneuvers, such as cornering or braking. By comparing these parameters across different laps and sessions, you can identify areas for improvement and fine-tune your driving technique to extract the maximum performance from your car.

Furthermore, the Driver worksheet helps you analyze the cause and effect relationship between your inputs and the car’s behavior. For example, you can correlate changes in steer angle with changes in grip levels, allowing you to optimize your steering inputs for better control. This data-driven approach enables you to make incremental adjustments that can have a significant impact on your lap times. By meticulously studying the information presented in the Driver worksheet, you can unlock hidden potential and take your driving skills to the next level.

Using the Driver Worksheet for Performance Improvements

When analyzing the data in the Driver worksheet, consider the specific areas of your driving technique that you want to improve. Are you struggling with understeer or oversteer? Is your cornering speed consistent throughout the lap? By focusing on specific aspects, such as braking points or throttle application, you can identify patterns and make targeted adjustments to improve your performance. Use the data in the Driver worksheet as a guide to refine your driving technique, adapt to different track conditions, and ultimately achieve faster and more consistent lap times.

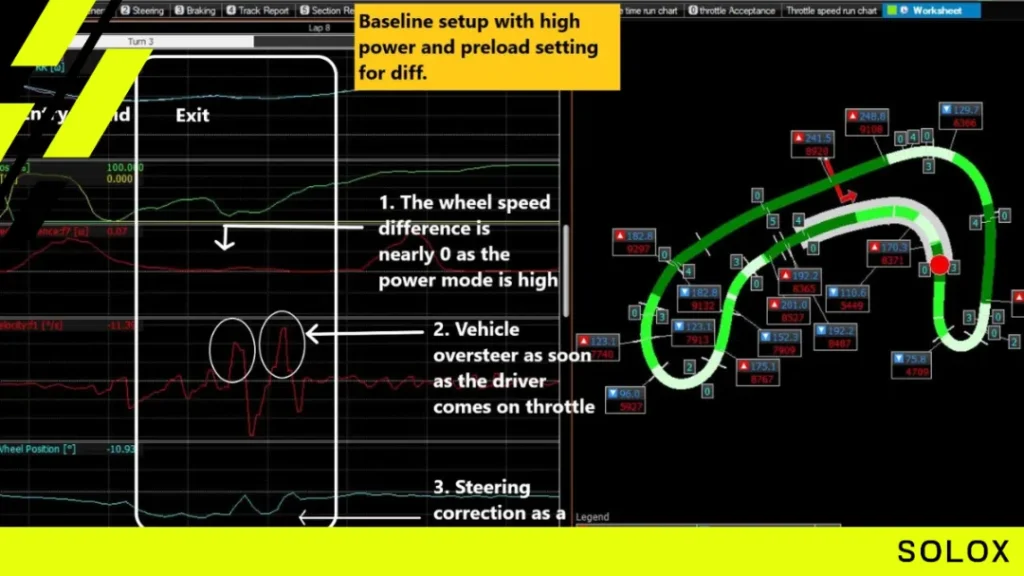

Understanding Wheel Speed Data in MoTeC

The Wheel Speed worksheet in MoTeC is a crucial tool for analyzing wheel spin under acceleration or heavy braking. It provides valuable data that helps us fine-tune ABS and traction settings, ultimately optimizing the car’s setup for different track conditions. By understanding wheel speed data, we can make informed decisions to improve our performance on the track.

In the Wheel Speed worksheet, we can view the data in various formats, such as line graphs or histograms, allowing us to easily visualize and interpret the information. This data helps engineers and drivers identify areas where excessive wheel spin may occur, indicating potential traction issues. By analyzing this data, we can make adjustments to the car’s setup, such as changing differential settings or adjusting traction control parameters, to improve overall grip and acceleration.

Additionally, the Wheel Speed worksheet in MoTeC allows us to compare different sessions and laps. This helps us identify patterns in wheel speed data and understand how changes in driving style or setup adjustments affect wheel spin. With this knowledge, we can make data-driven decisions to optimize our driving technique and make necessary tweaks to our car’s configuration.

Analyzing Understeer and Oversteer in the Understeer/Oversteer Worksheet

The Understeer/Oversteer worksheet in MoTeC is a valuable tool for understanding the behavior of your car and making the necessary adjustments to improve grip and stability.

By combining multiple data sources such as speed, steering angle, lateral g-forces, oversteer, brake, and throttle, this worksheet calculates a single-digit number that indicates whether your car is experiencing understeer (negative value) or oversteer (positive value).

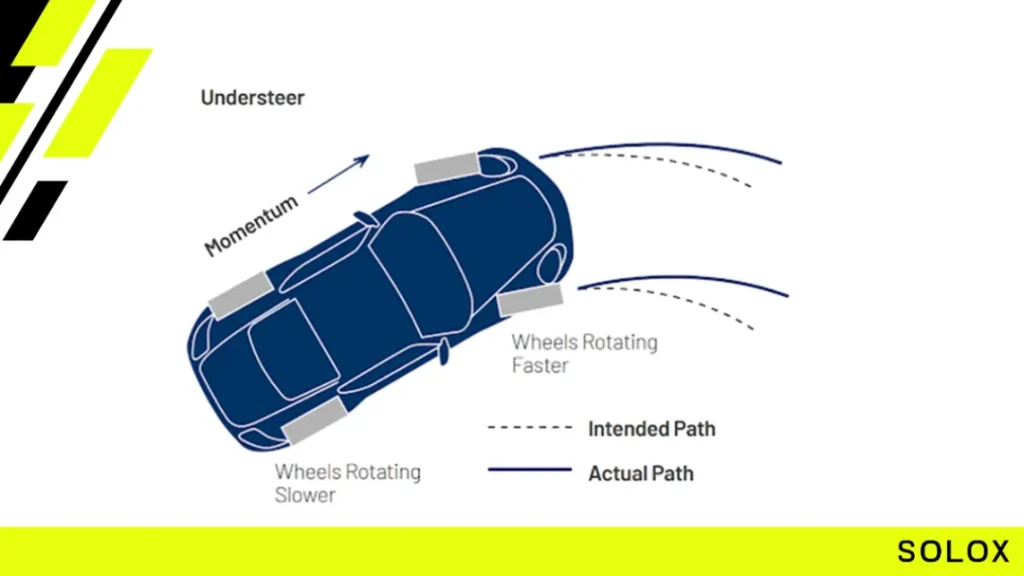

Analyzing Understeer and Oversteer

Understeer refers to a condition where the front tires lose grip and the car tends to push wide in turns. Oversteer, on the other hand, occurs when the rear tires lose grip, causing the rear end of the car to slide out. Understanding the extent of understeer or oversteer can help you identify areas where adjustments to your driving technique or car setup are needed.

By analyzing the data in the Understeer/Oversteer worksheet, you can gain insights into how different factors contribute to the car’s behavior. You can assess the relationship between speed, steering angle, lateral g-forces, and the effects of braking and throttle inputs. This information empowers you to make informed decisions about adjusting your driving style or making changes to your car’s setup to achieve better handling and increased confidence on the track.

Optimizing Grip and Stability

Improving grip and stability is crucial for achieving faster lap times and better overall performance. With the data provided by the Understeer/Oversteer worksheet, you can identify specific areas where grip is compromised and work on finding solutions. For example, if understeer is detected, you may need to adjust your line through corners, decrease front tire pressure, or fine-tune your suspension settings to enhance front-end grip. In the case of oversteer, adjustments to rear tire pressure, suspension, or rear wing angle may be necessary to maintain control through turns.

By analyzing understeer and oversteer data, you can develop a deeper understanding of your car’s handling characteristics and the impact of various inputs. This knowledge empowers you to make informed decisions that can lead to improved grip, stability, and overall performance in ACC. With practice and experimentation, you can fine-tune your driving technique and car setup to optimize your performance on the track.

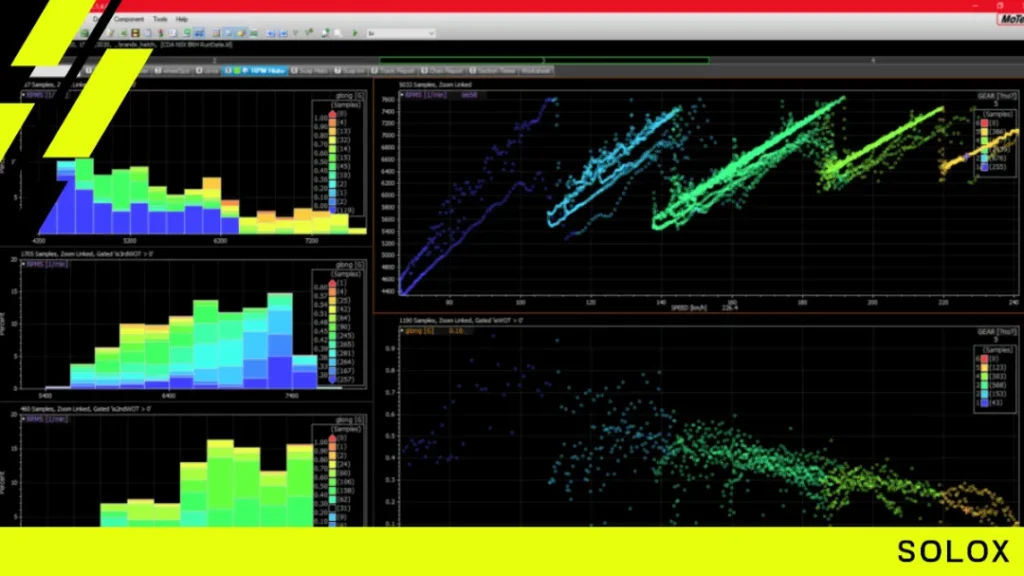

Analyzing Engine Revs in MoTeC

The Engine Revs worksheet in MoTeC is a valuable tool for ACC drivers looking to optimize their setup and improve performance on the track. This worksheet provides a visual representation of gear selection and engine usage, allowing drivers to analyze their shifting patterns and identify the optimum shift point for maximum speed on the straights.

By analyzing engine revs, drivers can fine-tune their gear selection to ensure they are always in the right gear for optimal acceleration and top speed. This not only improves overall performance but also helps to extend the life of the engine by preventing unnecessary strain on the components.

With the data provided by the Engine Revs worksheet, drivers can make data-driven decisions about their gear selection and adjust their driving technique accordingly. By finding the perfect shift point, they can maximize acceleration out of corners and maintain a consistent and efficient pace throughout the race.

Overall, the Engine Revs worksheet in MoTeC is a powerful tool that allows drivers to gain a deeper understanding of their gear selection and engine usage. By leveraging this data, drivers can fine-tune their setup and technique to achieve better lap times and improve their overall performance on the track.

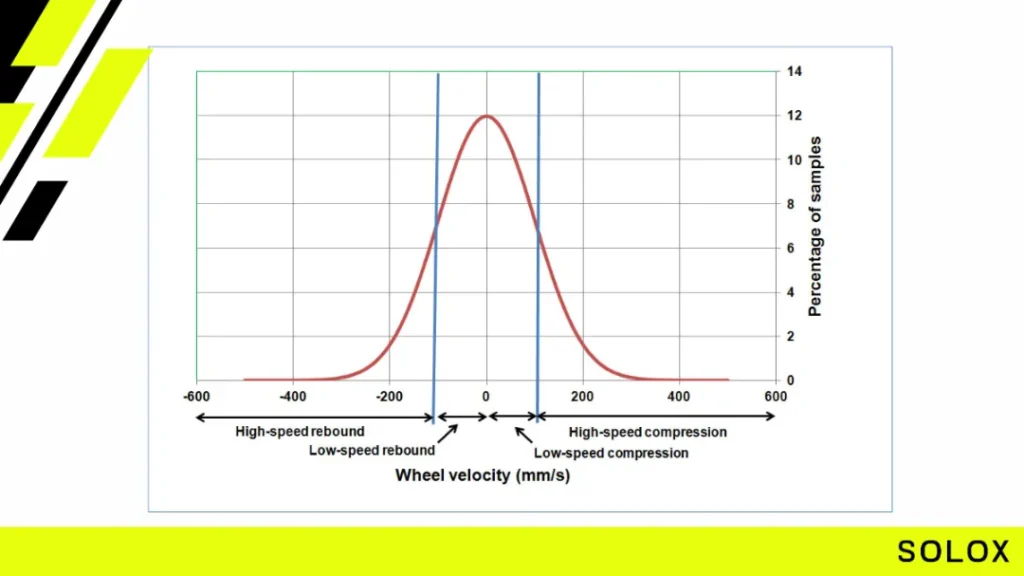

Understanding Suspension Histograms in MoTeC

One of the key tools in MoTeC for analyzing and fine-tuning your car’s suspension setup is the Suspension Histogram worksheet. This worksheet provides a visual representation of damper velocity, which is crucial for optimizing your suspension performance. The ideal visualization is a bell-shaped curve, indicating that the suspension is working within the optimal range for providing grip.

By analyzing the Suspension Histogram, you can identify areas where the damper velocity is outside the desired range, which may indicate a need for adjustments to the suspension settings. For example, if you notice spikes or dips in the histogram, it could indicate that the suspension is bottoming out or becoming too stiff. This information can help you make data-driven decisions to improve your car’s performance and stability.

Optimizing Suspension Settings

Using the Suspension Histogram, you can experiment with different damper settings to achieve the desired results. If you notice excessive body roll or a lack of grip in certain corners, you can adjust the suspension to address these issues. By fine-tuning the compression and rebound settings, you can optimize the car’s behavior under different track conditions and improve your lap times.

It’s important to note that finding the perfect suspension setup is a process of trial and error. You may need to make several adjustments and analyze the effects using the Suspension Histogram to find the optimal settings for your driving style and track conditions. With practice and experimentation, you can fine-tune your suspension and gain a competitive edge on the race track.

Analyzing Suspension Travel in MoTeC

The Suspension Travel worksheet in MoTeC is a valuable tool for understanding how the car’s suspension compresses under the influence of downforce. This information provides crucial insights into optimizing the car’s aerodynamic setup and maintaining stability throughout a lap.

The Suspension Travel worksheet complements the Suspension Histogram by providing specific data on how the suspension behaves during different sections of the track. By analyzing this data, drivers can make informed decisions about adjusting their aero setup to achieve the desired performance.

Understanding suspension travel is essential because it directly affects the car’s grip, stability, and overall handling. By optimizing the suspension compression under downforce, drivers can fine-tune their car’s setup to deliver maximum traction, particularly in high-speed corners or under heavy braking.

Analyzing Suspension Travel in MoTeC

When using the Suspension Travel worksheet, pay attention to how the suspension behaves in different sections of the track. Look for any anomalies or irregularities that may indicate potential issues with the car’s setup or handling characteristics.

By analyzing suspension travel data, drivers can identify areas where the suspension is compressing excessively or insufficiently, making adjustments to optimize grip and stability. This can involve tweaking the car’s aero balance, adjusting damper settings, or making other suspension-related modifications.

The Suspension Travel worksheet is a powerful tool that helps drivers fine-tune their car’s setup for optimal performance. By analyzing and understanding suspension travel data in MoTeC, drivers can enhance their driving experience and extract the maximum potential from their car on the track.

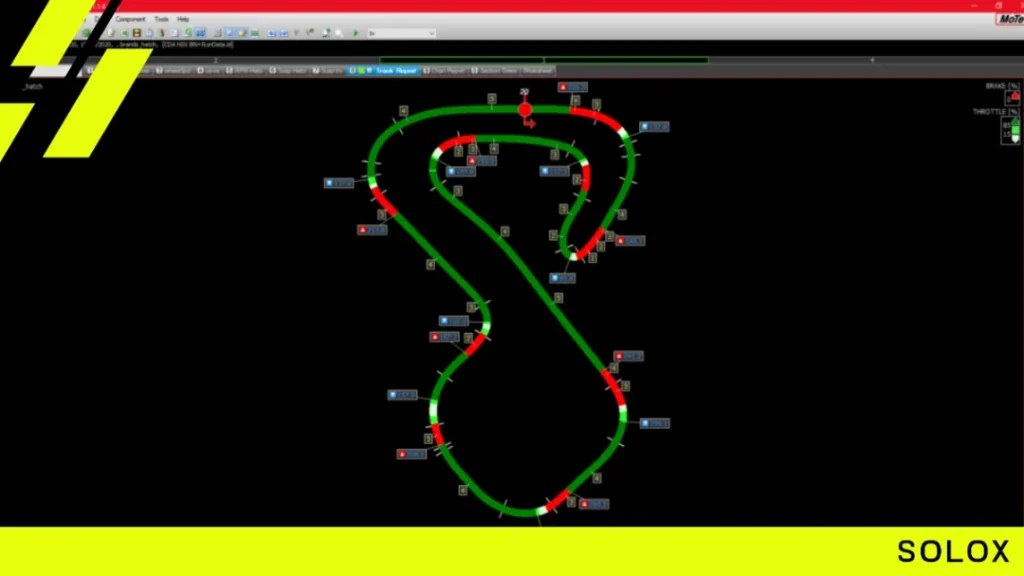

Using the Track Report Worksheet in MoTeC

The Track Report worksheet in MoTeC is a powerful tool for analyzing and optimizing your performance on the track. This worksheet provides a visual representation of the track overlaid with data points, giving you valuable insights into your brake pressure and throttle percentage at different points on the track.

By studying this information, you can identify areas of instability and loss of grip, allowing you to make adjustments to your driving technique and car setup for better performance. Whether you’re a seasoned racer or just starting out, the Track Report worksheet can help you fine-tune your skills and improve your lap times.

Using the Track Report Worksheet

To utilize the Track Report worksheet, simply open MoTeC and select the ACC workspace. Load in your recorded telemetry data, and navigate to the Track Report worksheet. Once there, you’ll see a graphical representation of the track with data points.

By analyzing the brake pressure and throttle percentage at different points on the track, you can identify areas where you may be braking too early or not applying enough throttle. This knowledge can help you optimize your racing line and make adjustments to your driving style for maximum performance.

Furthermore, the Track Report worksheet allows you to compare different sessions and laps, enabling you to see how your performance varies across different runs. This comparison can highlight areas where you consistently struggle or excel, guiding you to focus on specific aspects of your driving that may need improvement.

Analyzing Channel Data in MoTeC

The Channel Report worksheet in MoTeC is a powerful tool for ACC drivers to analyze various data streams and gain insights into their performance. This worksheet provides numerical representations of speed, lateral g-forces, and steering angle at each turn apex, enabling drivers to make data-driven decisions for performance improvement.

Analyzing Speed and G-forces

When analyzing the Channel Report data, one key aspect to consider is speed. By looking at the speed data at different points on the track, drivers can identify areas where they may be losing time or where they have the potential to gain speed. Additionally, the Channel Report provides information on lateral g-forces, which helps drivers understand the car’s grip and cornering performance. By analyzing the g-forces, drivers can fine-tune their driving technique and optimize their lines through corners.

Studying Steering Angle

Another important parameter to analyze in the Channel Report is the steering angle. By examining the steering angle data at each turn apex, drivers can gain insights into their driving technique and make adjustments to improve their lines. This information can help drivers find the optimal approach to corners and ensure smooth, efficient steering inputs.

Using Histograms for Visualization

In addition to the numerical data, the Channel Report also provides histograms for visual interpretation. These histograms offer a graphical representation of the speed, lateral g-forces, and steering angle data, allowing drivers to identify patterns and trends more easily. By comparing the histograms of different laps, drivers can spot areas where they need to focus their attention and make specific improvements.

Overall, the Channel Report worksheet in MoTeC is an invaluable tool for ACC drivers looking to analyze their performance and make data-driven decisions for improvement. By studying the speed, g-forces, steering angle, and using histograms for visualization, drivers can fine-tune their driving technique and optimize their car’s setup to achieve better lap times.

Analyzing Section Times in MoTeC

When it comes to optimizing lap times in ACC, analyzing section times is crucial. The Section Times worksheet in MoTeC allows us to break down sector times into smaller segments, providing a detailed analysis of where time is gained or lost on a lap. By comparing these small sectors, we can identify specific areas for improvement and make data-driven decisions to enhance our performance.

Using the Section Times worksheet, we can pinpoint the sections where we are consistently slower compared to our competitors or previous laps. This analysis helps us focus our efforts on mastering those particular parts of the track. It might be a challenging turn, a specific braking point, or an acceleration zone where we can make subtle adjustments to our driving technique or car setup to gain an edge.

With the ability to review and compare our section times, we can track our progress over time. By identifying trends and patterns, we can evaluate the effectiveness of our adjustments and fine-tune our approach accordingly. Analyzing section times in MoTeC gives us the opportunity to optimize our overall lap performance and achieve our racing goals.

Conclusion

We have explored the power and potential of MoTeC as a valuable tool for ACC drivers. Through its various worksheets, MoTeC enables us to dive deep into the world of telemetry data and unlock the secrets to unlocking our true potential on the track. By analyzing data in the Compare worksheet, we can identify areas for improvement and make adjustments to our driving style and car setup. The Driver worksheet provides us with insights into the relationship between steering inputs, corner speed, and grip, allowing us to fine-tune our technique and increase consistency.

The Wheel Speed worksheet helps us understand wheel spin under acceleration or heavy braking, enabling us to optimize our ABS and traction settings. The Understeer/Oversteer worksheet calculates a single-digit number that reveals the car’s behavior and our own driving habits, guiding us to make adjustments for better stability and grip. The Engine Revs worksheet visualizes gear selection and engine usage, assisting us in finding the ideal shift points for maximum speed. The Suspension Histogram and Suspension Travel worksheets give us a deeper understanding of the car’s suspension behavior and its response to aero changes, allowing us to optimize our setup for each track.

The Track Report worksheet overlays data on a graphical representation of the track, helping us identify areas of instability and grip loss. By analyzing channel data in the Channel Report worksheet, we can make data-driven decisions for performance improvement. The Section Times worksheet breaks down sector times, providing us with detailed insights into where time is gained or lost on a lap. By utilizing all these powerful tools, we can take control of our performance, improve our lap times, and dominate the competition.

So whether you’re a casual racer or a seasoned professional, the MoTeC guide we have provided will empower you to leverage the full potential of this data analysis tool. With practice and dedication, you can unlock the secrets hidden within your telemetry data, optimize your car’s setup, and reach new heights in ACC. It’s time to embrace the power of MoTeC and unleash your true racing potential!
