The best sim racing pedals in 2026 are the ones with a load cell brake you can mount solidly and press the same way every lap. At the bottom, that is the MOZA SRP2 at $149 or the Logitech RS Pedals at $159.99. In the middle, the MOZA CRP2 and Fanatec ClubSport V3. Spend more and you get Heusinkveld Ultimate+, hydraulic sets from Asetek and Simagic, and active pedals from Simucube, MOZA and now Simagic.
Checked on 15 October 2026 against the official product pages and stores of MOZA (us.mozaracing.com), Logitech G, Fanatec (US store), Thrustmaster, Heusinkveld (EU store), Asetek SimSports (EU store), Simagic and Simucube, plus Simucube's ActivePedal Sport announcement. Prices are the ones each store showed that day, in the currency it showed. Where a maker does not publish a spec, I say so.
This is a buyer's guide built from published specs. I have not had these pedals on my rig, so every verdict below comes from what the makers publish and from what a brake pedal has to do for a driver.
What matters in a brake pedal
The brake is the pedal that makes you faster. The throttle matters, but the brake is where lap time hides.
In a real race car, the brake pedal barely moves once the pads touch the disc. You do not drive a distance with your foot. You drive a pressure. Your leg learns how hard 80% feels, and that is what you repeat into every braking zone.
That is why the sensor is the first thing to check:
- Potentiometer or Hall sensor on travel. It measures how far the pedal moves. Fine for learning, but your leg has to remember a position, and a position is harder to repeat under stress.
- Load cell. It measures force. This is how a real car works, and it is the single biggest hardware upgrade for consistent braking. I go deeper on this in my load cell pedals guide.
- Hydraulic. A real master cylinder and fluid, with a pressure sensor. The feel at the top of the stroke and the hard wall at the end come closer to a car. More in my hydraulic pedals guide.
- Active. A motor drives the pedal. You set the feel in software and the pedal can push back with ABS, lock-ups and slip. The most adjustable option and the most expensive.
Then brake force. A bigger number is not better. The force you calibrate to has to be one you can hit at the end of a long stint, not only on a fresh leg. If you set it too high, your braking points drift long as you tire. The Logitech RS Pedals review shows how one maker ships a 75 kg sensor set to 22.5 kg out of the box for exactly this reason.
Last, mounting. A stiff brake on a flexing desk or a light wheel stand moves the whole pedal tray instead of the sensor. Above roughly the mid-range, budget for a proper rig. My list of sim rigs covers that.
Quick picks by budget
| Budget | Pick | Brake sensor | Published brake figure | Price checked |
|---|---|---|---|---|
| Entry | MOZA SRP2 | Load cell + angle sensor | 0 to 100 kg range | $149 |
| Entry | Logitech RS Pedals | Load cell | 75 kg | $159.99 |
| Entry | Thrustmaster T-LCM | Load cell | 100 kg | $249.99 |
| Mid | MOZA CRP2 | Load cell + angle sensor | 0 to 200 kg range | $369 (sale, $399 list) |
| Mid | Fanatec ClubSport V3 | Load cell | 90 kg | $429.99 |
| Mid | Heusinkveld Sprint (3 pedals) | 120 kg load cell | 65 kg max force | €654.36 |
| High | Heusinkveld Ultimate+ (2 pedals) | 200 kg load cell | 140 kg max force | €1,188.74 |
| Hydraulic | Asetek Invicta T.H.O.R.P. II | Hydraulic, 0 to 100 bar | 180 kg at the pedal plate | €891.81 |
| Hydraulic | Simagic P2000 | Hydraulic brake | Not published in text | $609 to $829 |
| Active | Simucube ActivePedal Ultimate | Active | 170 kg | $2,499 |
Euro prices from Heusinkveld and Asetek include VAT as shown on their EU stores. US prices are before sales tax.
Entry level: under $250
MOZA SRP2: $149
The cheapest load cell brake on this list. MOZA lists a hybrid load cell and angle sensor brake with a 0 to 100 kg range, two pedals in the box and a $45.90 clutch as an add-on. It connects over USB straight to a PC, and the product title says PC and Xbox. PlayStation is not mentioned.
Verdict: if you are coming off a bundle pedal set and want pressure braking for the least money, start here.
Logitech RS Pedals: $159.99
Load cell brake rated at 75 kg, Hall effect throttle, USB connection. Logitech's US store listed them at $159.99 and in stock. The clutch is a separate module. I covered the 75 kg figure and how to tune the brake stack in the RS Pedals review.
Verdict: a sensible first load cell for anyone already in the Logitech ecosystem.
Fanatec CSL Pedals LC: $239.98
Fanatec's custom load cell brake with a Hall effect throttle, 12-bit on both. Fanatec does not publish a maximum brake force for this set. It only gives a minimum sensitivity of about 10 kg, adjustable in the tuning menu. It runs over USB on PC, or by RJ12 through a Fanatec base. Consoles work only through a Fanatec wheel base or racing wheel.
Verdict: the right buy if you already own a Fanatec base and race on console. Off Fanatec, the others give you more published spec for the money.
Thrustmaster T-LCM: $249.99
Load cell brake, magnetic sensors, and Thrustmaster's page states "up to 220 lb / 100 kg of pressure on the load cell force sensor". It ships with removable USB and RJ12 cables and lists PC, PS4, PS5 and Xbox. Console support still depends on the wheel base you plug it into. Full breakdown in my T-LCM review.
Verdict: the safest entry pick if you swap between PC and PlayStation.
Mid-range: $350 to €700

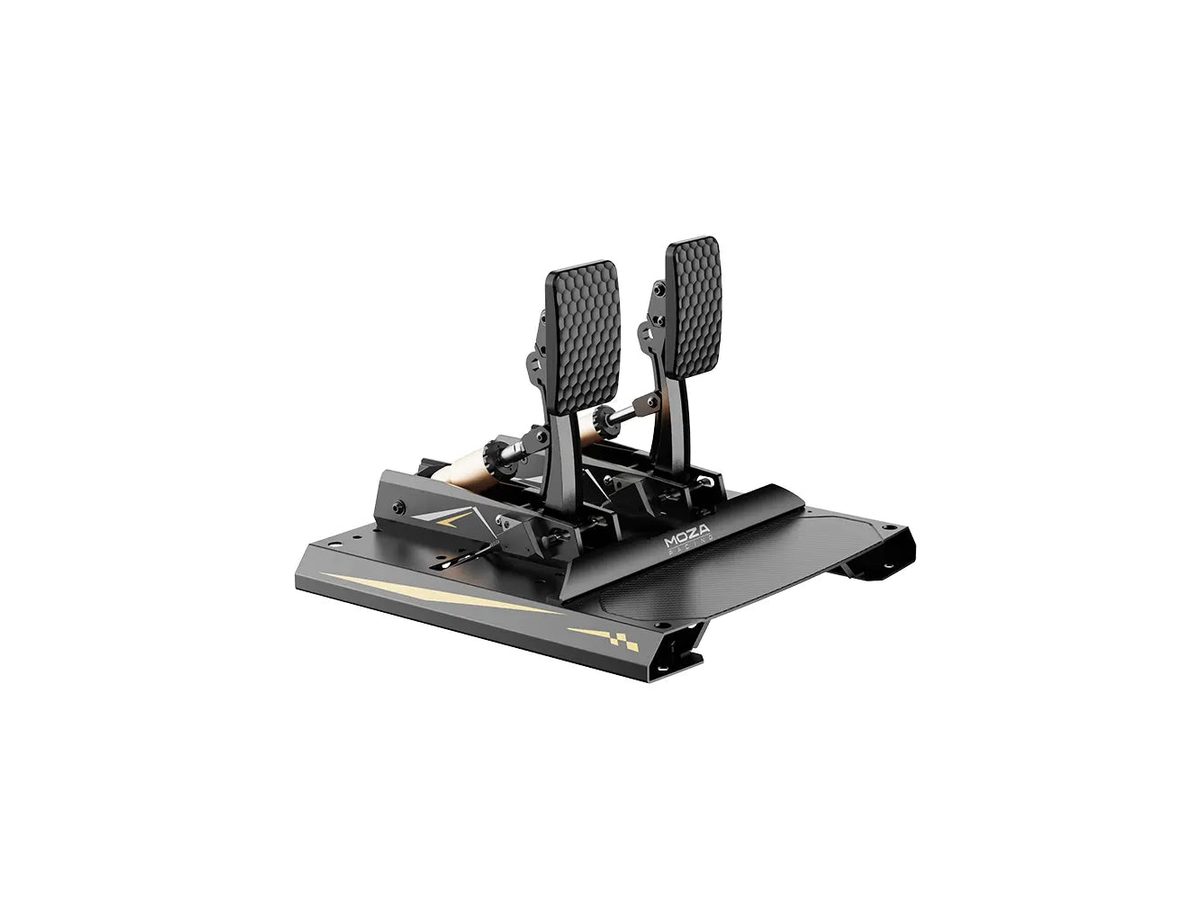

MOZA CRP2: $369
Load cell plus angle sensor on the brake, with a 0 to 200 kg range. MOZA lists 15 to 20 degrees of brake travel and 15 to 23 degrees on the throttle, USB to PC, and PC and Xbox compatibility. It was $369 on sale against a $399 list price. The clutch is $99 extra.
Verdict: the most sensor range per dollar in this bracket. Mount it on a rig, not a desk.

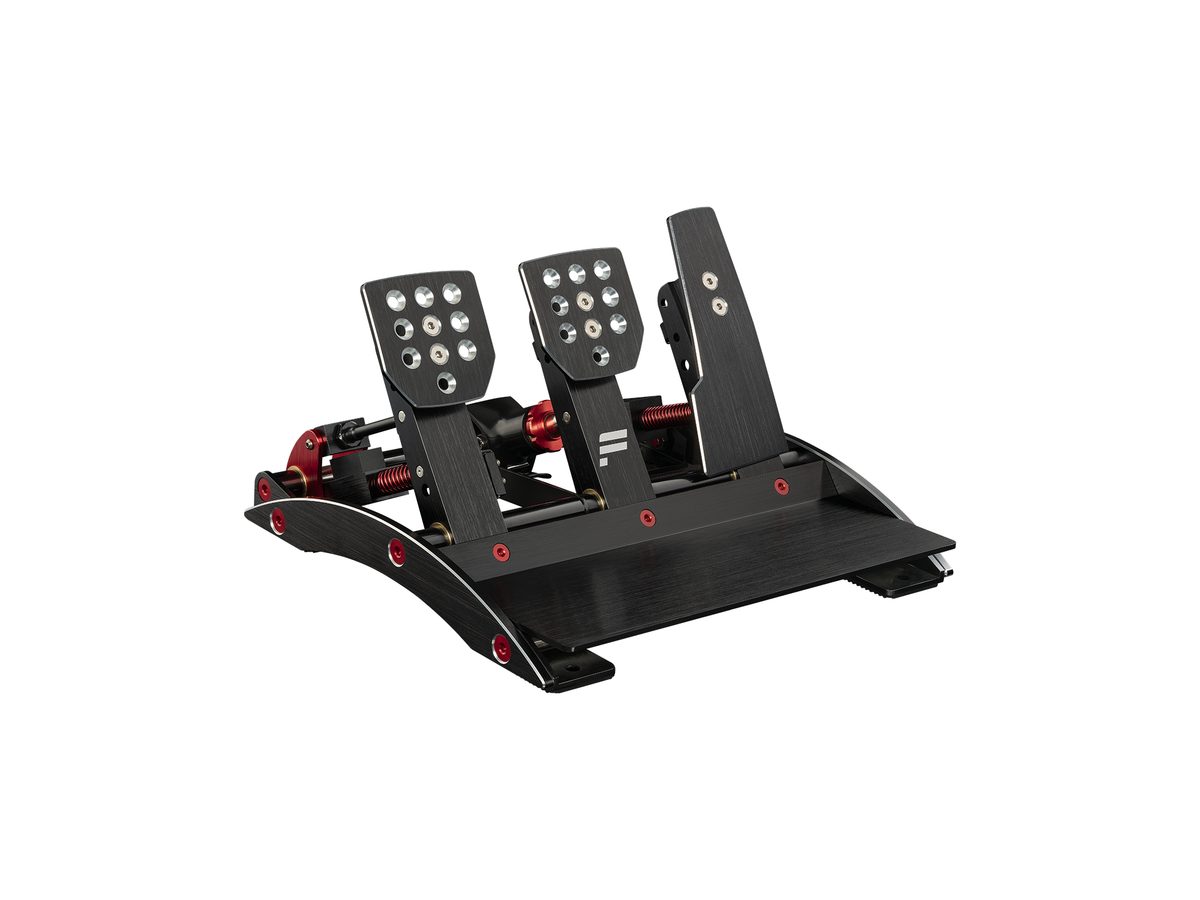

Fanatec ClubSport Pedals V3: $429.99
A 90 kg adjustable load cell on the brake, contactless Hall sensors on throttle and clutch, and two vibration motors: one on the throttle for wheelspin, one on the brake for ABS and lock-ups. On PC it runs over USB in games that accept a second controller, like iRacing and Assetto Corsa. Consoles only through a Fanatec base, not over direct USB.
Verdict: three pedals and rumble in the box. Strong pick inside the Fanatec ecosystem.
Heusinkveld Sprint: €654.36 (3 pedals)
Heusinkveld puts a force sensitive 120 kg load cell in the brake and quotes 65 kg of maximum force, with six brake resistance settings. Throttle and clutch also use load cells, position sensitive this time. USB, and PC only: Heusinkveld says Windows 10 or newer, no consoles, no Linux. The store shows €654.36 with VAT and €540.79 without.
Verdict: if you only race on PC, this is the step from consumer pedals to the sort of brake feel the top end is built around.
Asetek Forte S-Series: €542.34 (brake and throttle)
Asetek's own load cell cylinder sits on the brake, with up to 180 kg of force sensing at the pedal plate. The throttle uses a 16-bit magnetic Hall sensor. Asetek lists PC on the product page. €542.34 with VAT, €444.54 without.
Verdict: a lot of brake for the money, as long as you are on PC.
High end: load cell
Heusinkveld Ultimate+: €1,188.74 (2 pedals)
A force sensitive 200 kg load cell in the brake, up to 140 kg of force, nine brake resistance settings and a custom 12-bit USB controller. PC only, same as the Sprint. €1,188.74 with VAT on the EU store. My older Heusinkveld Ultimate review covers the earlier model.
Verdict: the load cell set to beat if you want a stiff, high-force brake without going hydraulic or active.
Hydraulic pedals

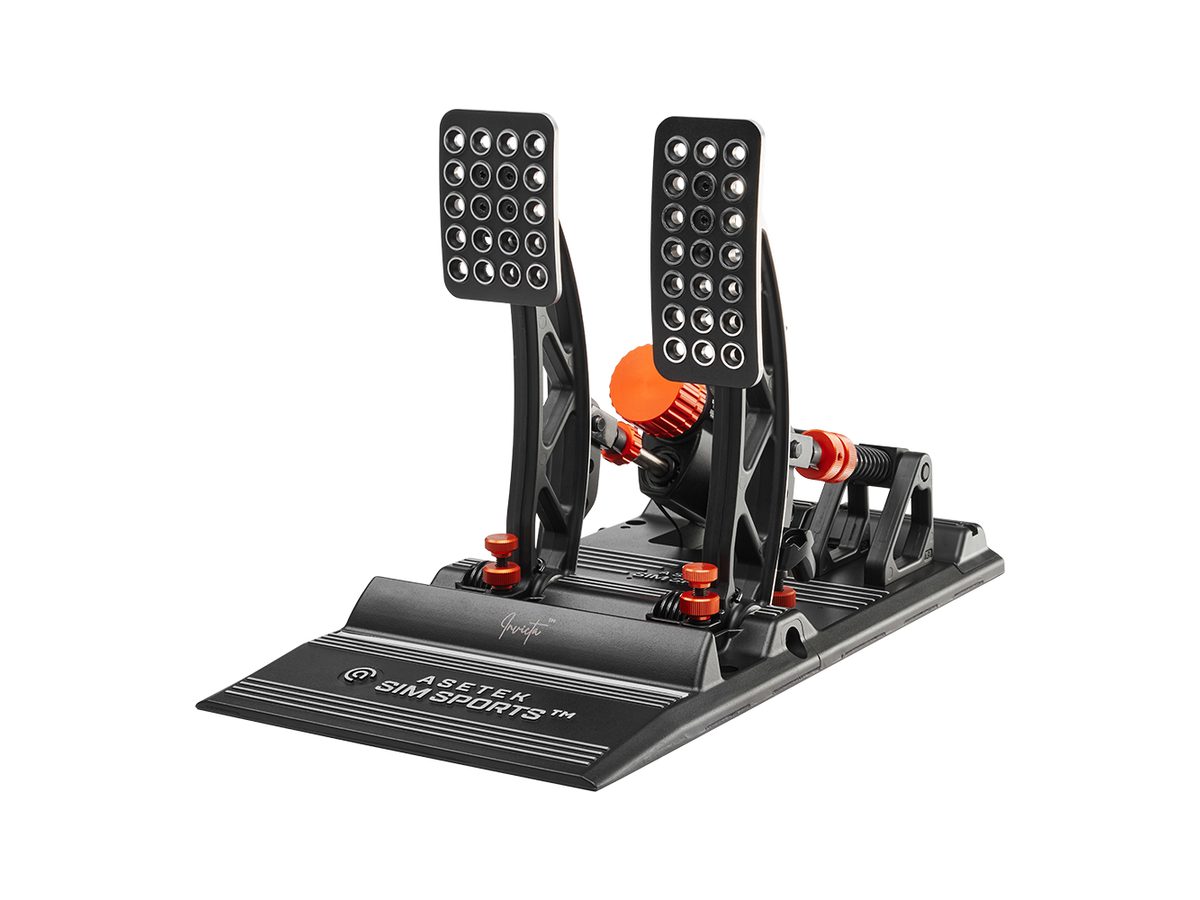

Asetek Invicta Pedals T.H.O.R.P. II: €891.81
A hydraulic brake cylinder with an automotive grade pressure sensor reading 0 to 100 bar. Asetek's spec: 100 bar equals 180 kg on the pedal plate, and the pedal arm is designed for 200 kg. The pedal moves 10 to 20 mm while pressure builds, then goes hard. That is the same two-stage feel a race car brake gives you: travel while the pads close the gap, then a wall. PC, single USB connection. €891.81 with VAT, €713.45 without.
Verdict: the hydraulic set to look at first. The published spec is clear and the brake concept matches how a real car behaves.

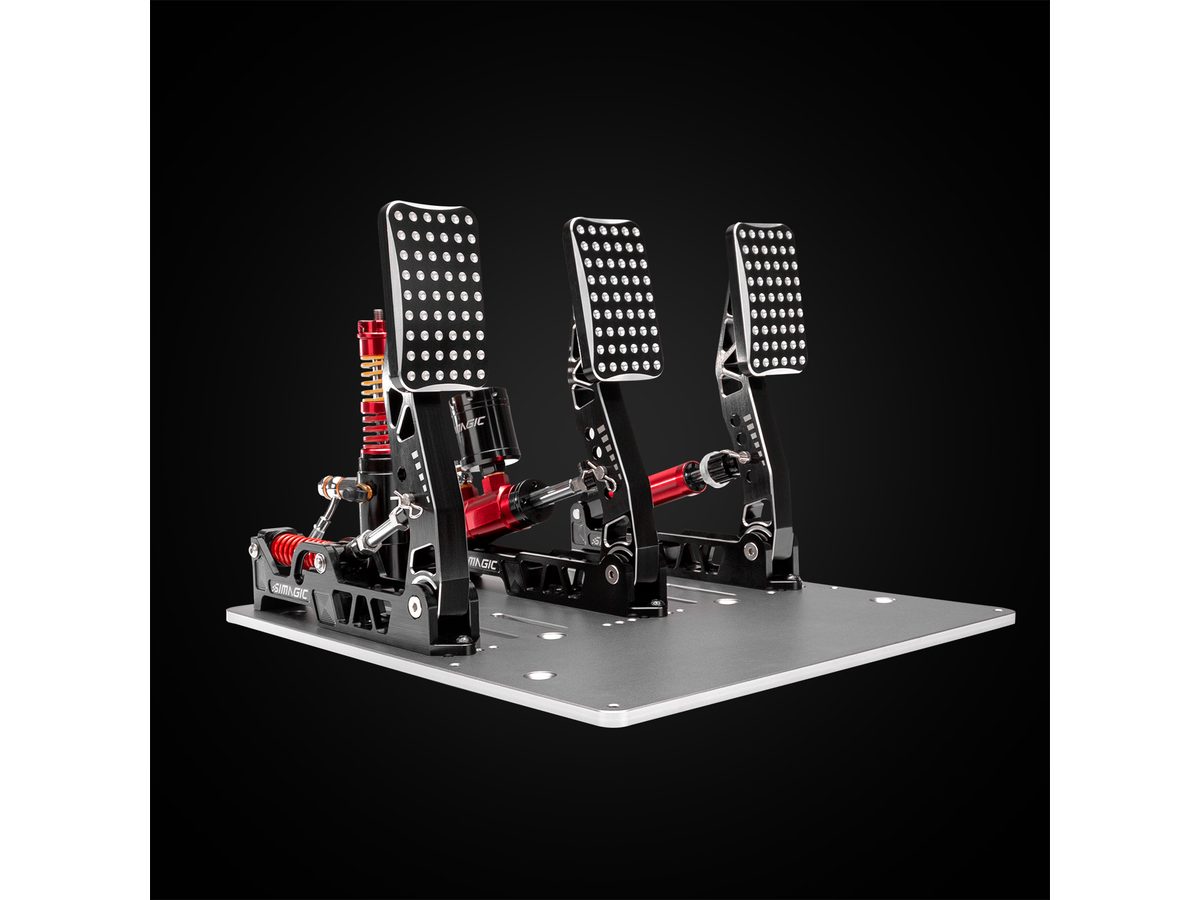

Simagic P2000: $609 to $829
Simagic's hydraulic set. The store lists eight versions from $609 to $829. The S and L prefixes cover throttle length and the 100 or 200 suffix covers the brake load cell, according to retailer listings. Simagic's product page does not give the brake force, sensor details or platform support in text. They sit in the product images only.
Verdict: probably good value against the Asetek, but I want Simagic's own spec sheet in text before I rank it higher.
Active pedals

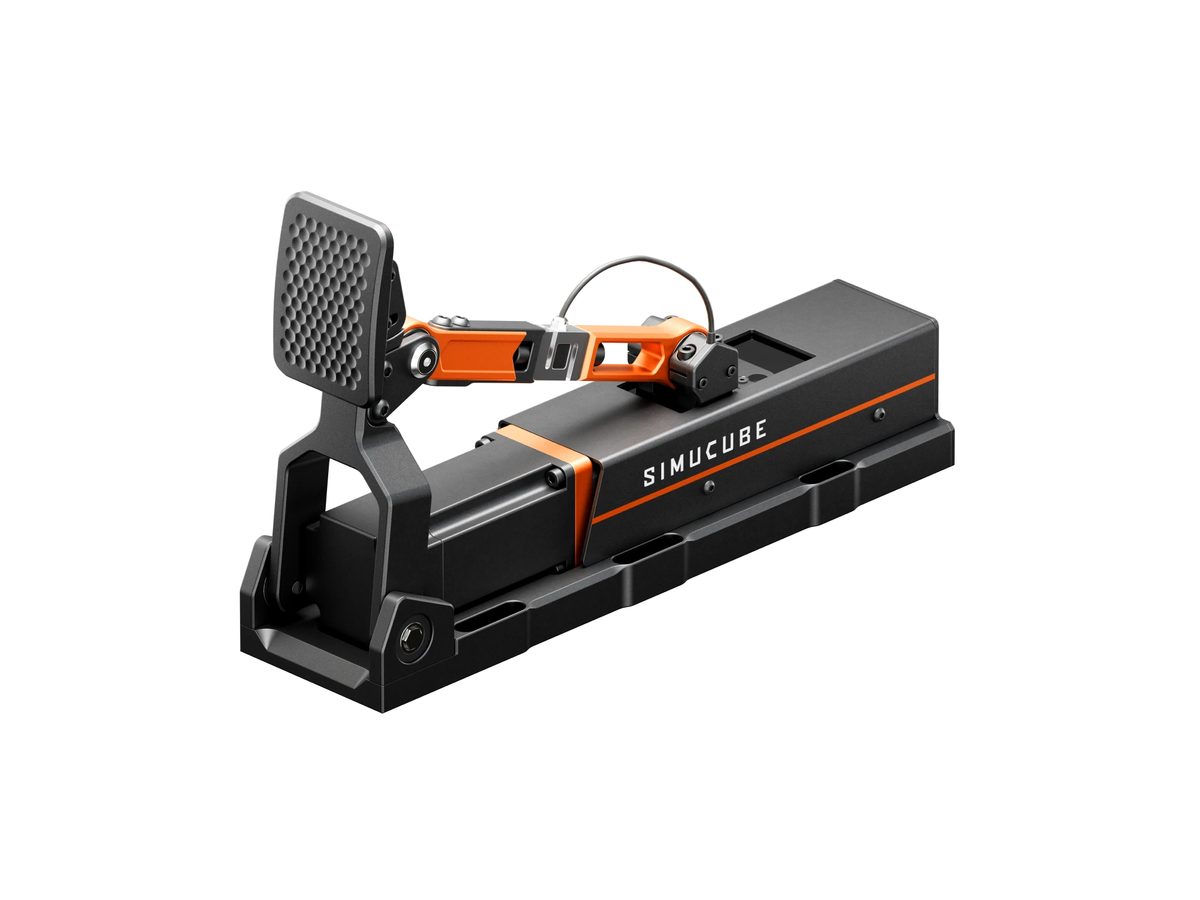

Active pedals swap springs, elastomers and cylinders for a motor. You set the brake curve, travel and stiffness in software, and the pedal can play ABS, lock-ups and wheel slip back into your foot. Here is how the Simucube ActivePedal works.
| Pedal | Max force | Max travel | Price checked | Status |
|---|---|---|---|---|
| Simucube ActivePedal Ultimate | 170 kg (120 kg in medium mode) | 62 mm (79 mm in medium mode) | $2,499 | On sale |
| Simucube ActivePedal Pro | 110 kg | 74 mm | $1,849 | On sale |
| MOZA mBooster Active Pedal | 0 to 200 kg sensor range | 0 to 25 degrees adjustment | $759 (sale, $799 list) | On sale |
| Simagic P-ACTIVE | 180 kg (software limit) | Not published | $999 | Pre-order, ships 18 November |
| Simucube ActivePedal Sport | 100 kg | 60 mm | €901 excl. VAT, $1,199 excl. tax | Early 2027 |
Simucube prices are from its US store, before tax. MOZA does not state a maximum brake force for the mBooster, only the 0 to 200 kg range of its dual load cells.

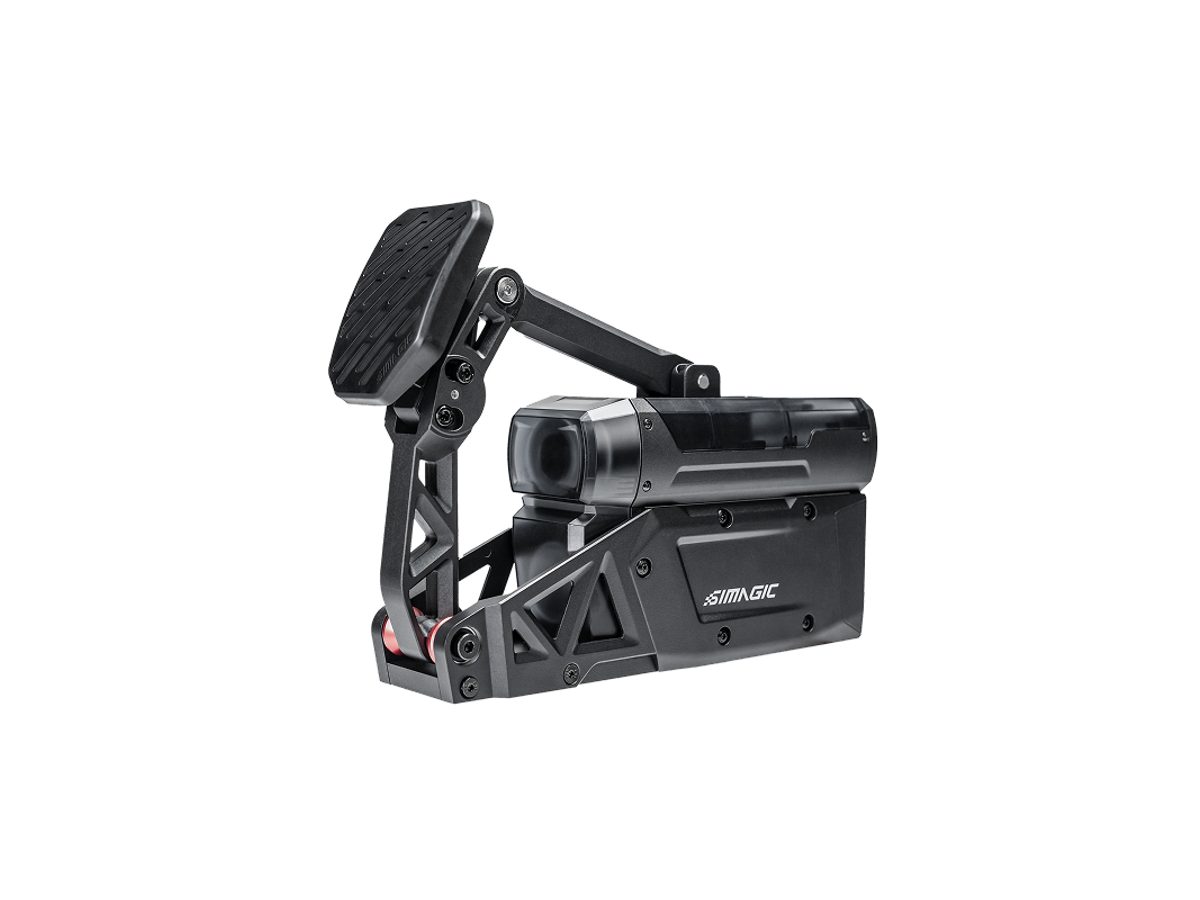

New this week: Simagic P-ACTIVE
Simagic's first active pedal went on its store on 14 October 2026. Official: $999 for the pedal, $1,199 for the variant listed as P1000-FB, pre-order, "Ships Nov 18", free mount included. The product page shows its specs in graphics rather than in text: 180 kg of maximum force in software and dual 250 kg load cells, which match Traxion's launch report. Full details in my Simagic P-ACTIVE article.
Verdict: wait for Simagic to publish the full spec and for the first independent tests.
Coming in 2027: Simucube ActivePedal Sport
Simucube's cheapest active pedal. Official: 100 kg max force, 60 mm max travel, brake, throttle or clutch set in Simucube Tuner, 36-month warranty. €901 excl. VAT, $1,199 excl. tax, or £999 inc. VAT. It needs a Simucube Link Hub, which is not in the box. The recommended set with Co-Pedal and Link Hub is €1,280 excl. VAT. Sales open in early 2027, with early access sign-up now.
SimRacing Expo Frankfurt runs 16 to 18 October 2026. Both new pedals are on show there, and more pedal news may land that weekend. I will update this page if it does.
Verdict on active pedals overall: the Pro and Ultimate are the reference for adjustability. For most drivers, a good load cell or hydraulic brake gets you most of the consistency for a third of the money.
What I would skip
Pedals that only measure travel, once you are serious. Bundle pedals like the set above are fine for your first months. After that, a load cell brake is a bigger step than a stronger wheel base. I make the same point in my budget wheels guide.
Also skip buying force you cannot use. A 200 kg sensor on a desk clamp or a folding stand is wasted money. Fix the mounting first.
FAQ
What are the best sim racing pedals for beginners?
A load cell set at the bottom of the market: the MOZA SRP2 at $149, the Logitech RS Pedals at $159.99, or the Thrustmaster T-LCM at $249.99 if you need PlayStation support.
Are load cell pedals worth it?
Yes. A load cell measures pressure, the way you brake in a real car, so your braking becomes more repeatable. It is the hardware upgrade I would make before a stronger wheel base.
How much brake force do I need?
Less than the box says. Set it to a force you can hit every lap at the end of a long stint. The sensor rating, 75 kg, 100 kg or 200 kg, is the ceiling, not a target.
Hydraulic or load cell pedals?
Both measure force. Hydraulic sets like the Asetek Invicta T.H.O.R.P. II add a real fluid cylinder, with travel at the start and a hard wall at the end, closer to a car. A good load cell set gives you most of the consistency for less.
Do sim racing pedals work on PS5 and Xbox?
Some do. Thrustmaster lists the T-LCM for PC, PS4, PS5 and Xbox. MOZA lists PC and Xbox for the SRP2 and CRP2. Fanatec pedals reach consoles only through a Fanatec base. Heusinkveld and Asetek list PC only.
Are active pedals worth the money?
For most drivers, not yet. The Simucube ActivePedal Pro is $1,849 for one pedal. Cheaper options are arriving, the Simagic P-ACTIVE at $999 and the ActivePedal Sport in early 2027, so prices are moving down.
